    Replace Ford Focus Air Filter MK2 (2005-2008)

    The air filter on the Ford Focus MK2 is required to be changed every 12,000 miles or every year (basically every time the Ford Focus is serviced.)

    You can easily replace the Air Filter in the Focus yourself using just a Torx screwdriver, and a couple minuets of time.

    Replace Ford Focus Air Filter

    Ford Focus Engine Bay - Remove Air Filter

    Open the bonnet on your Focus, and locate the Air Filter housing (Pictured above). This engine bay is from a 2.0l Duratec HE (Petrol), other Ford Focus MK2 engine bays may differ, but they are all laid out similar.

    Ford Focus Airbox Remova ScrewsLocate the 6 Torx screws holding the top of the box in place. Note the one screw under the piping can be a little tricky to get into. If this is the case, the airbox simply pulls out towards you, which will allow you to twist the air box to gain access to that one hard to reach screw.

    Torx Screw Driver

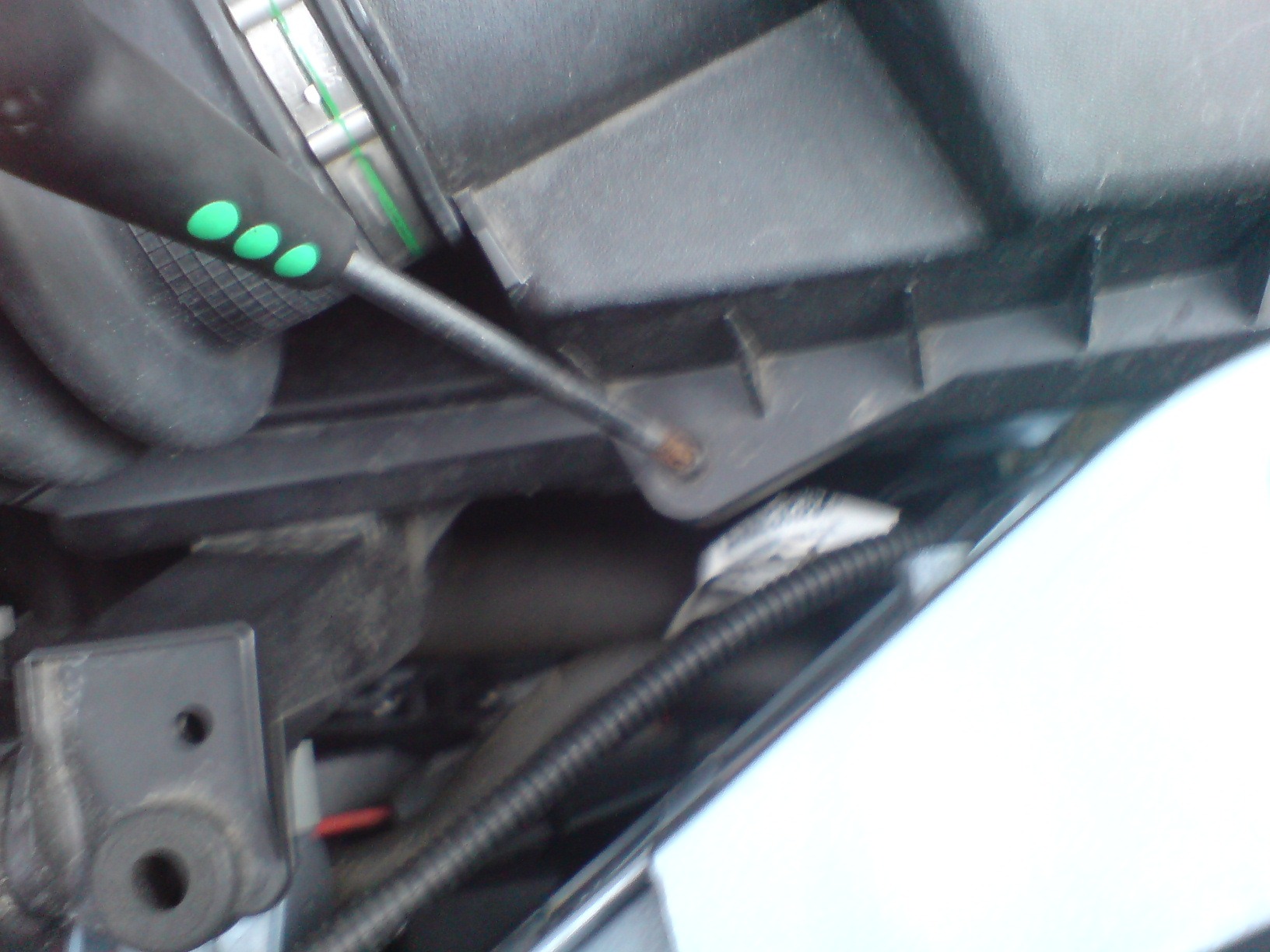

    Torx Screwdriver removing screws from the top of the air box

    These screws do not come all the way out, which is a great idea, as it stops you and technicians losing screws down into the engine bay when it comes time to service the car and replace the air filter.

    Replace Ford Focus Air Filter With K&N Re-Usable

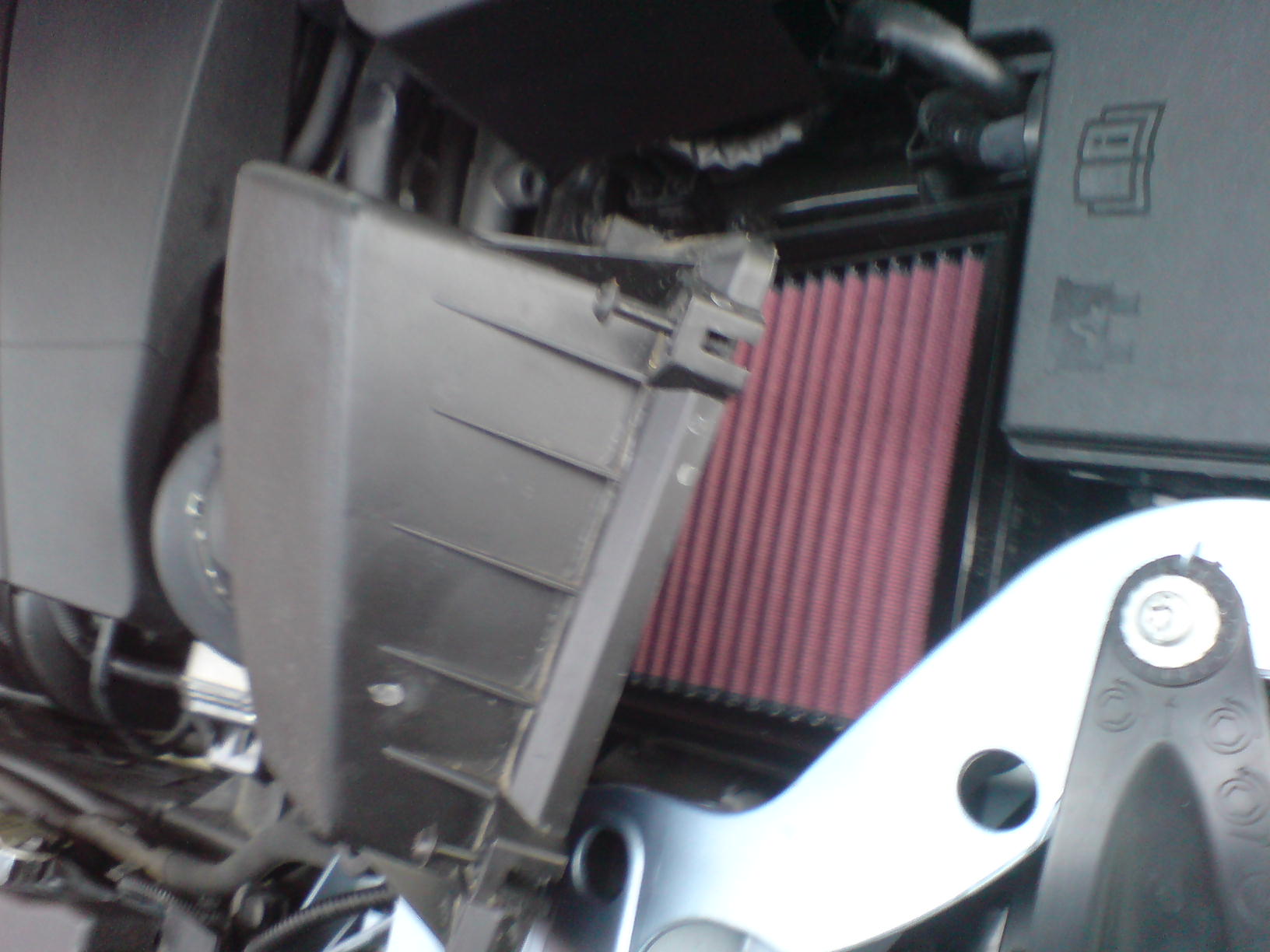

    Once the screws have been removed, the air box lid simply pulls up, revealing the air filter – The picture above shows a K&N Reusable Air Filter – These are simply just washed using water, and then re-lubricated using special oil.


    About the Author

    University Graduate from Teesside, currently residing in the big city of Newcastle-Upon-Tyne. Interests in the automotive industry and technology, and blogging about things which I feel would interest the readers of the world wide web.



    5 Responses to Replace Ford Focus Air Filter MK2 (2005-2008)

    1. Chris Hoskyn says:

      Hi, do you have an image of what your box is connected to as mine is just the top air box with no pipe down so it seems i am missing some pipe or maybe another filter box? Thanks for your help.

    2. Mpho Masokameng says:

      What is the engine code on the 2008 Ford Focus 2.0L Duratec HE, is it the LF or LX

    3. Stephen J Aldridge says:

      What size torx screwdriver did you use
