Service Ford Focus ST 225 2.5 Turbo – DIY

This guide explains how to service Ford Focus ST 225, which features the Volvo (t5) 2.5 litre turbo engine. I will walk you through everything you require from the parts you will need before hand, and how to find and remove items such as the sump plug and the oil filter.

The price from Ford for the same service would come to £250+, and I know I can do the same service for a fraction of the price, and make sure everything is done correctly for peace of mind.

This guide is suitable for the following models:

  • Ford Focus ST2 – 2.5 Litre Turbo (2005-2012)
  • Ford Focus ST3 – 2.5 Litre Turbo (2005-2012)

You will notice this guide follows the Ford Focus ST MK2.5 (Facelift) but the same principals cover the MK2 Ford Focus ST.

Service Ford Focus ST Info

The Ford Focus ST should be serviced every 12,500 miles, or every year, as per Ford’s guidelines. However, it may be good to have a mid service, where you could just drop your oil and replace with fresh oil (This seems to be a regular talk among Ford Owners Clubs). The full service Ford Focus ST Schedule can be found below.

Ford Focus ST Service Schedule

Year 1 (12,500 Miles)

  • Replace Oil Filter
  • Replace Oil
  • Replace Air Filter

Year 2 (25,000 Miles)

  • Replace Oil Filter
  • Replace Oil
  • Replace Air Filter
  • Replace Brake Fluid

Year 3 (37,500 Miles)

  • Replace Oil Filter
  • Replace Oil
  • Replace Air Filter
  • Replace Spark Plugs

Repeat from Year 1 every 12,500 miles, until 10 years or 125,000 miles where you will require your coolant and timing chain to be replaced. You can also get the service schedule from the Ford ETIS Website.

Service Ford Focus ST Parts Required

These are the following parts you will have to purchase to service your Ford Focus ST (note you will only need the top 3 for a small service)

  • 6.4 litre Oil – Recommend Castrol Magnatec 5W30 – Get yourself 2x 4.5 litre bottles (usually on offer in Halfords)
  • 1x Oil Filter (Ford Fin: 1421704) or obtainable from Halfords
  • 1x Sump Plug Washer (Ford Fin: 1386502) or from Halfords
  • 1x Air Filter (Ford Fin: 1418712)
  • 1x Pollen Filter (Ford Fin: 1354953)
  • 5x Spark Plugs (Ford Fin: 1505812)

Tools Required

You will need to confirm you have the following tools, especially the oil filter socket!

  • Phillips Head Screw Driver
  • Flat Head Screwdriver
  • T30 Torx Screwdriver / Socket Bit
  • 17mm Socket
  • 36mm Socket (Better to get a slim line oil filter sockets)
  • Wrench (Compatible with the 36mm socket above)
  • Extension Bar (as the oil filter is tucked away a little bit)
  • Wrench Pivot bit (as the oil filter is off-set)
  • Car Jack
  • 2x Axle Stands
  • Bucket (to empty your oil into)
  • Rag – as it can get a little messy

Confirm you have all of the before attempting to service your car, else there it may be a long way to walk to your local auto parts store when your car has no oil in.

Service Ford Focus ST Steps

As stated above, make sure you have the correct tools – It helps to line them all out to make sure.

Service Ford Focus ST Parts

First use your jack to jack the car up, and place axle stands under the car to support it while you work under the car. Once the car has been raised and is supported, you will need to remove the under tray to gain access to the sump.

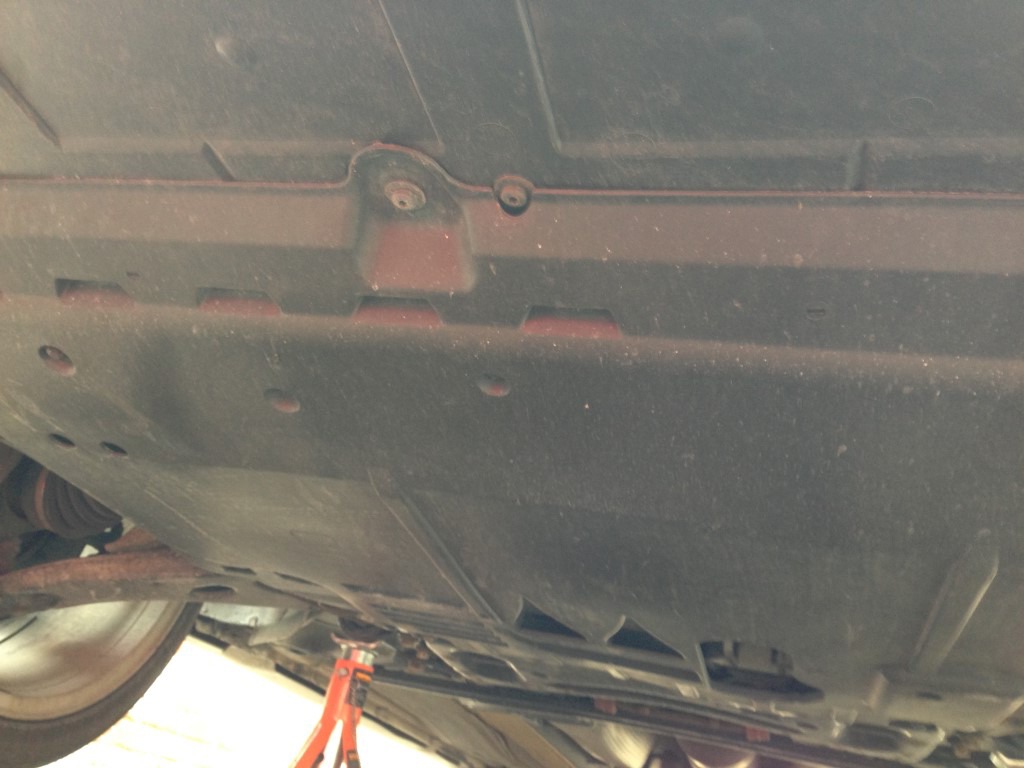

Ford Focus ST Under Tray

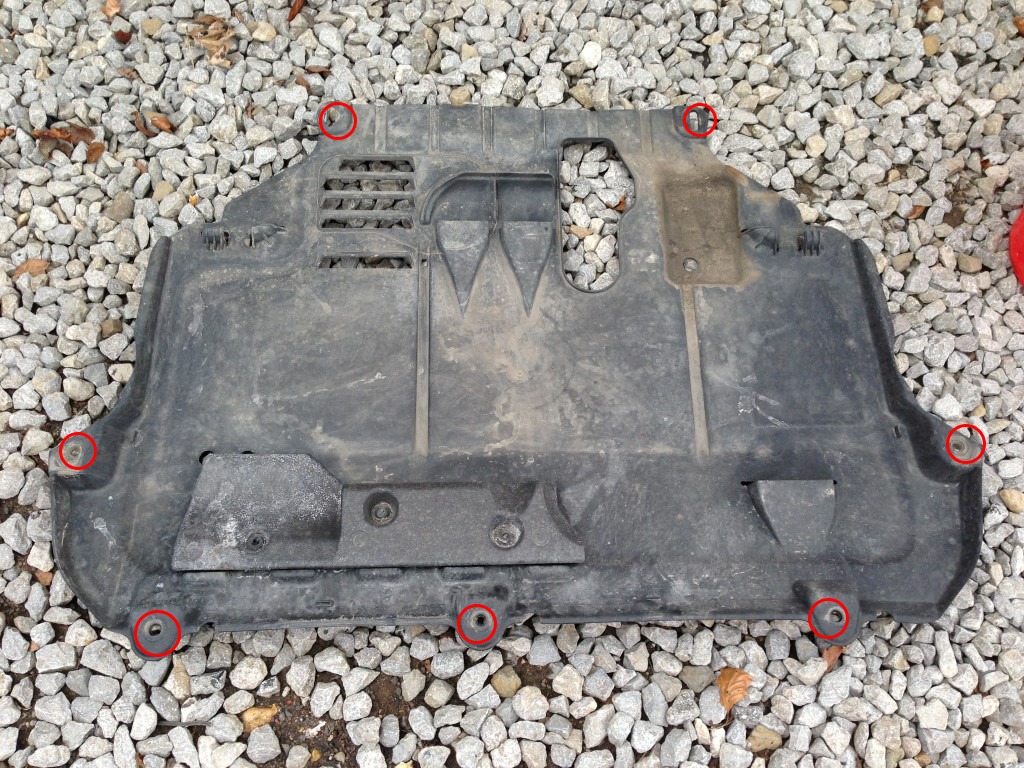

The under tray is held in place using 7x T30 screws, so using your Torx Screwdriver, remove the screws as outlined in the image below.

Ford Focus ST Under Tray Removed

Now that the screws have been removed, pull the front lip down, and slide the under tray towards the front of the vehicle, as the tray is held in place by two positioning clips at the rear of the tray.

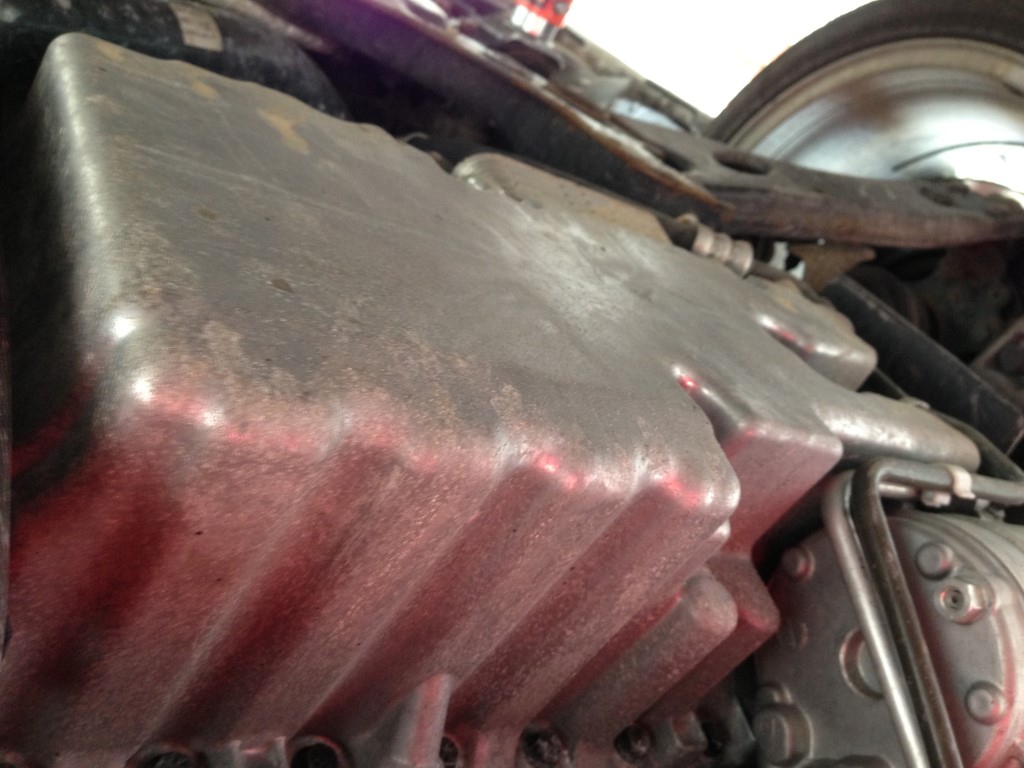

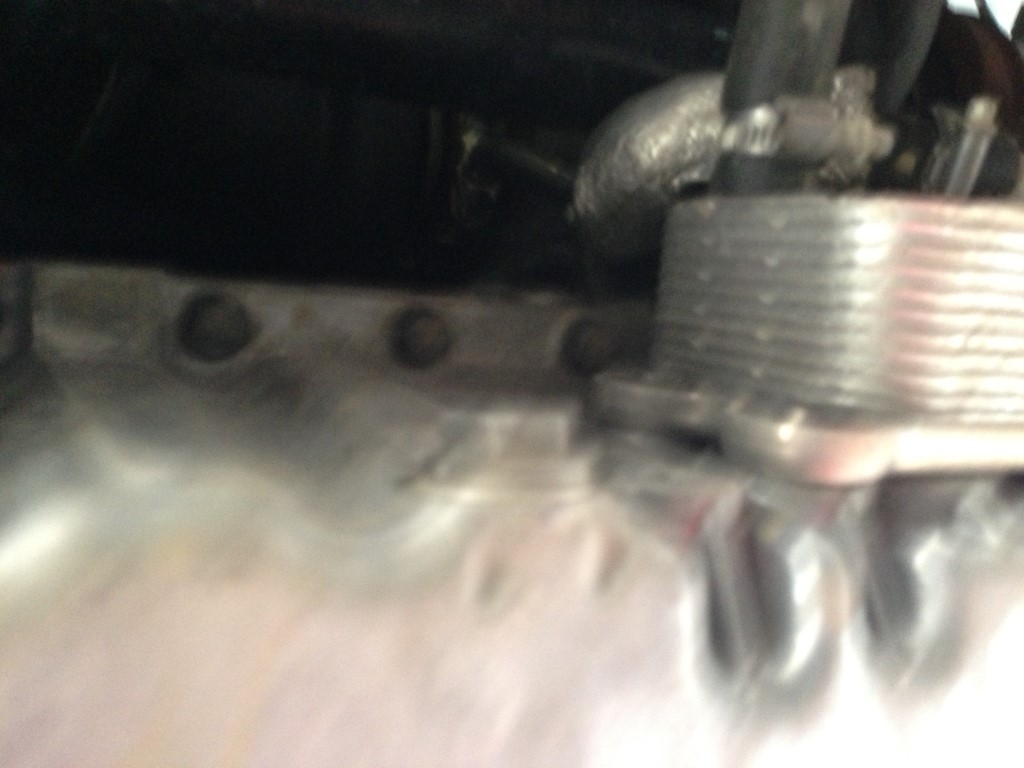

You will now have access to the alloy sump, and the sump plug, which is found on the rear of the sump. (sorry for the bad image of the 17mm sump plug)

Ford Focus ST Sump Plug Ford Focus ST Alloy Sump

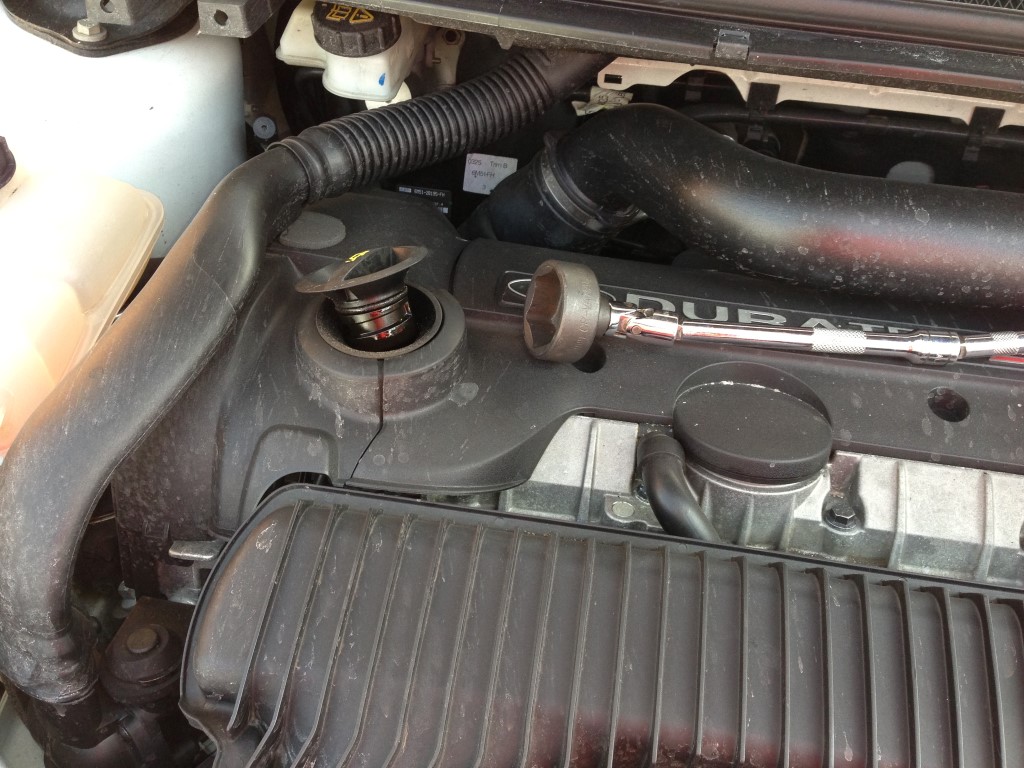

Now back to the top of the car, open your bonnet, and unscrew the oil filler cap, and also slide the dip stick out a little – This will allow the oil to flow out easily from the sump when we remove the sump plug.

Ford Focus ST Oil Filler Cap

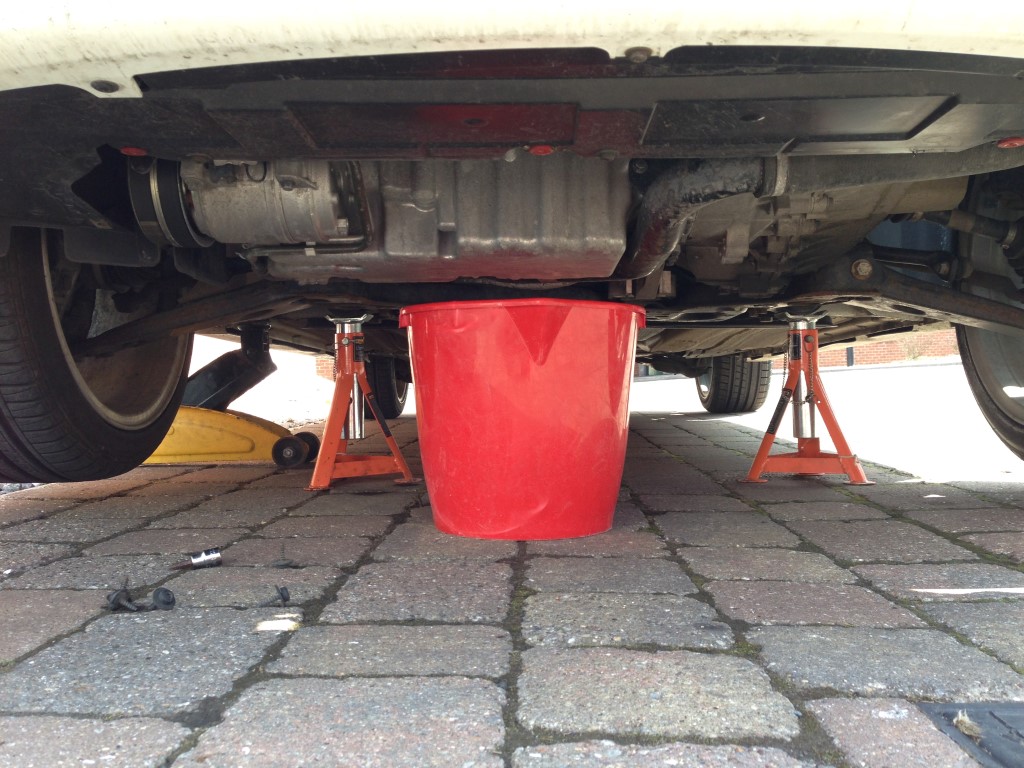

Now to start the messy part, dropping the oil from the sump. First place your bucket under the vehicle (make sure it fits – Hopefully you have jacked your car up high enough, or you could use a slim line bucket, but make sure there’s enough room for all 6.5(ish) litre of oil which will be removed from the car.

Ford Focus ST Oil Change

Now using your 17mm socket and wrench, undo the sump plug until you can unscrew the rest by hand, be careful at this point not to drop the sump plug into the oil, else you’ll have to become extremely messy when you have to go ‘fishing’ for your sump plug.

Ford Focus ST Oil Removal

While the oil is draining from the sump, we can now remove the oil filter from its housing. This is fairly tricky as there’s not a lot of room to work with. To make things a little easier (and I say little in the loosest of terms), we will remove the cold air intake, which will require the slam  panel to be removed. This is just held in place by plastic screws and caps.

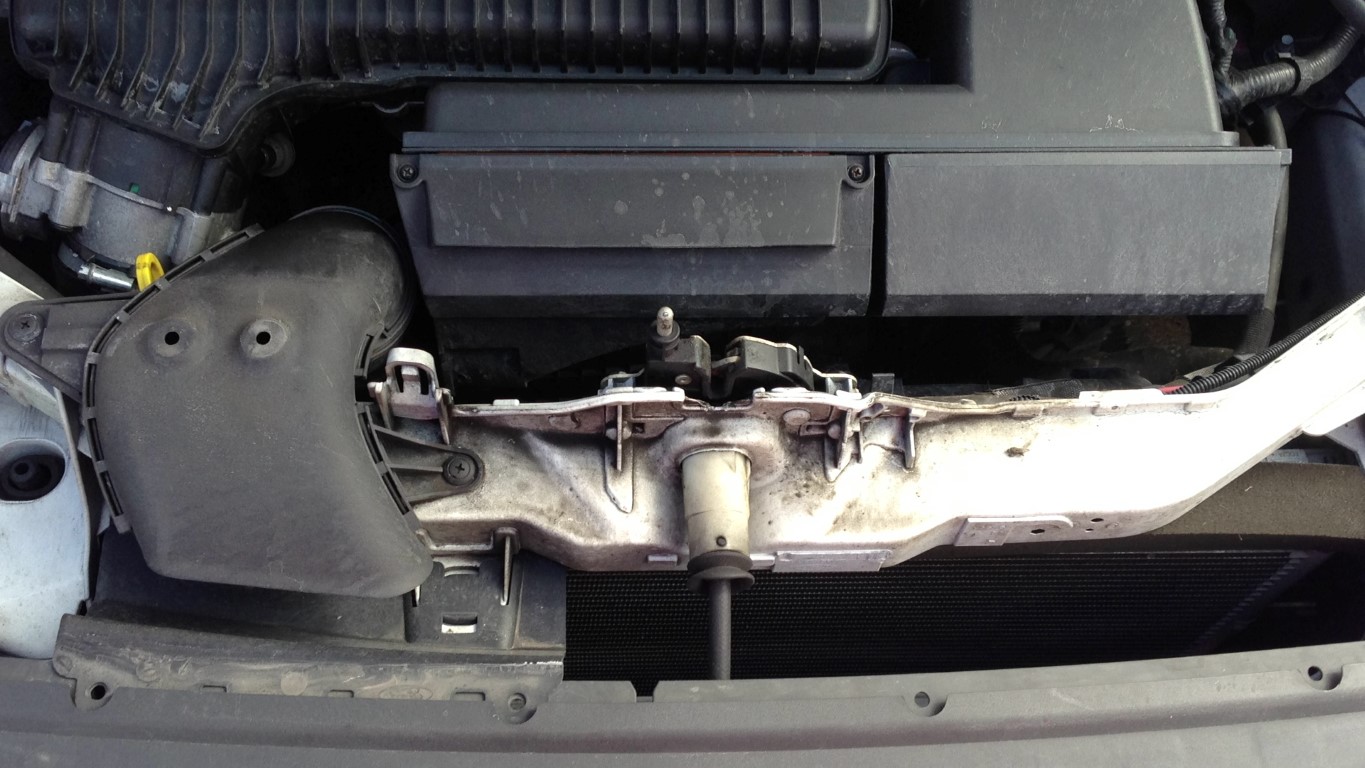

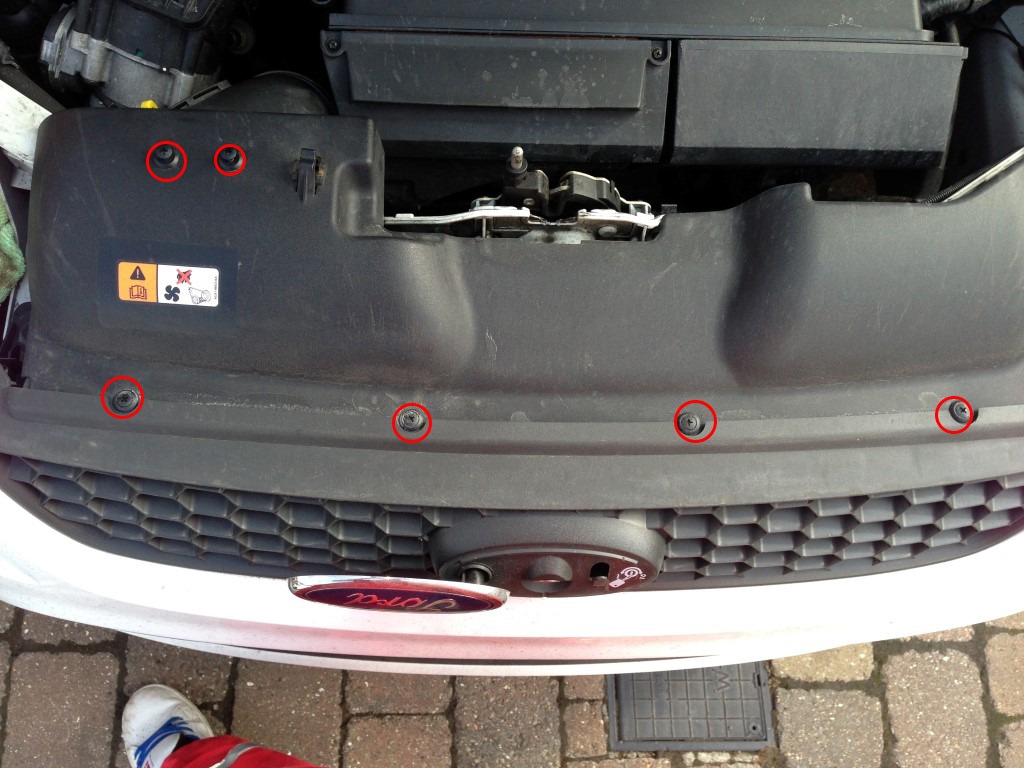

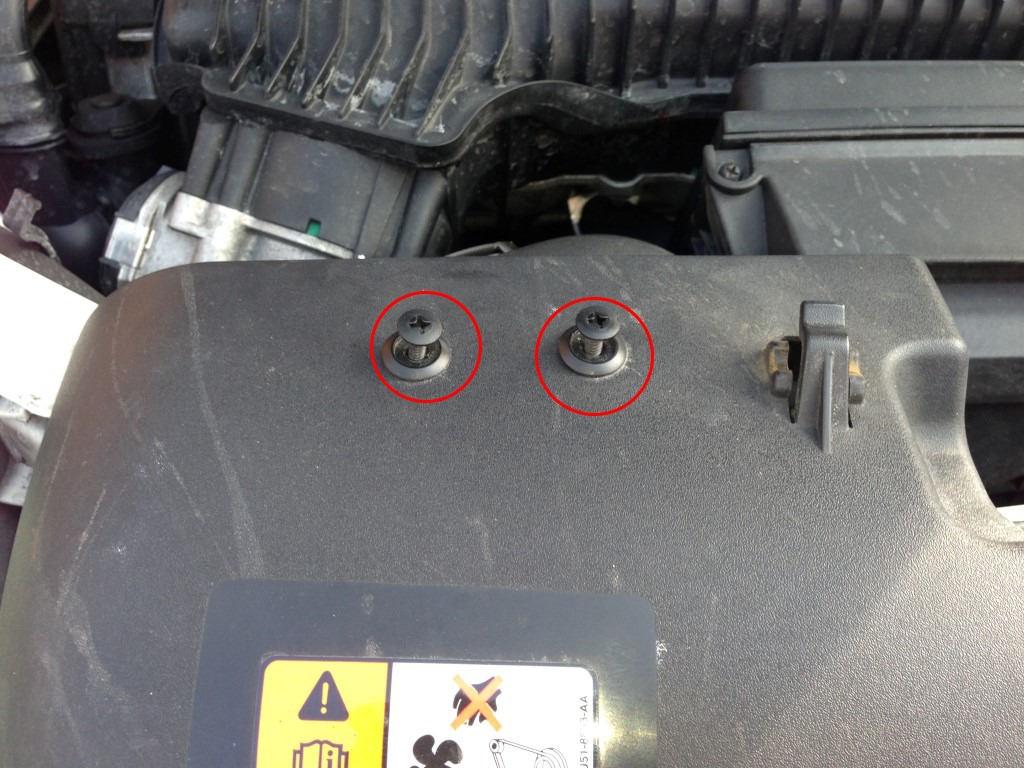

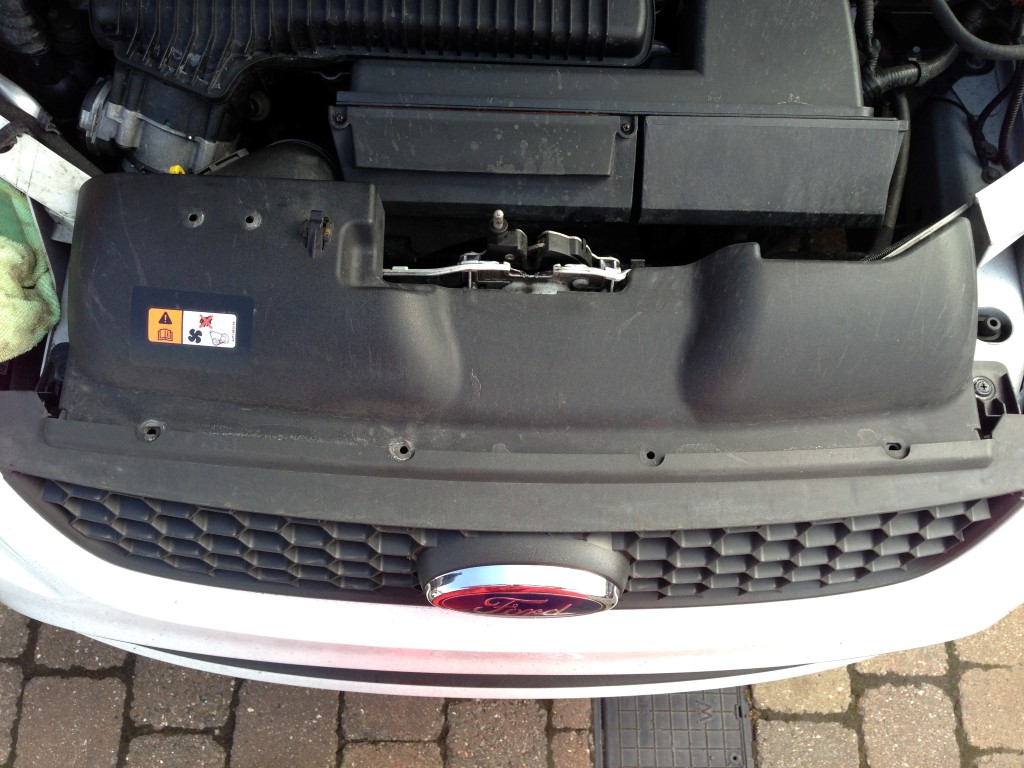

Ford Focus ST Cold Air IntakeFord Focus Slam Panel RemovalFord Focus Slam PanelFord Focus Bonnet Lock

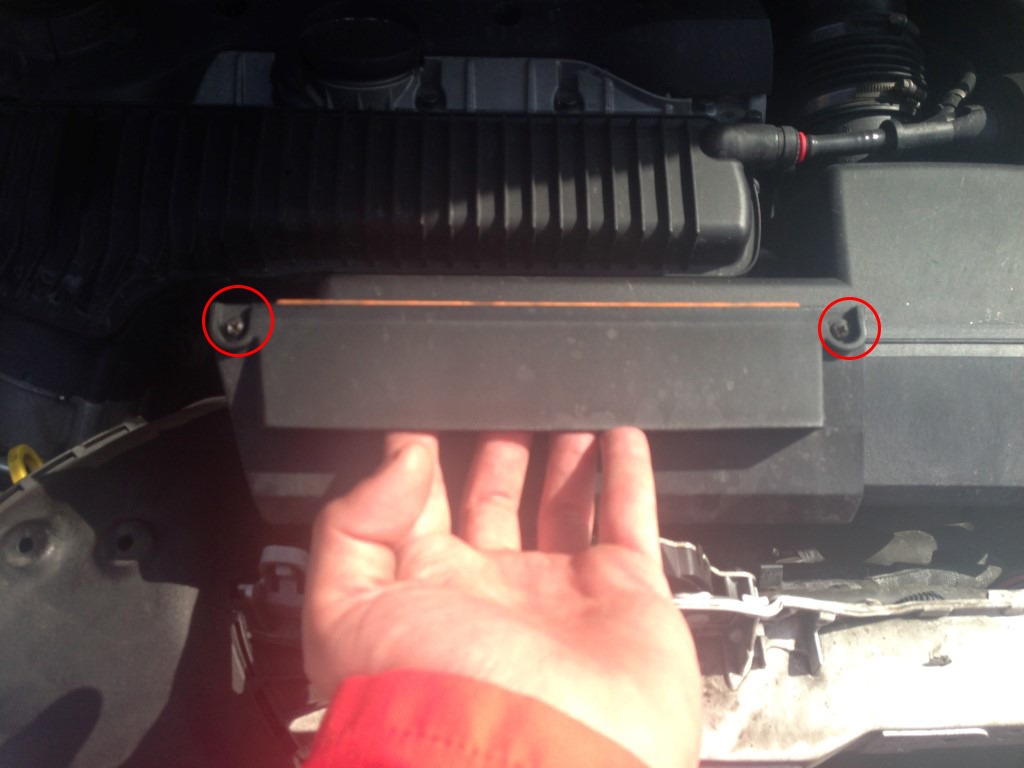

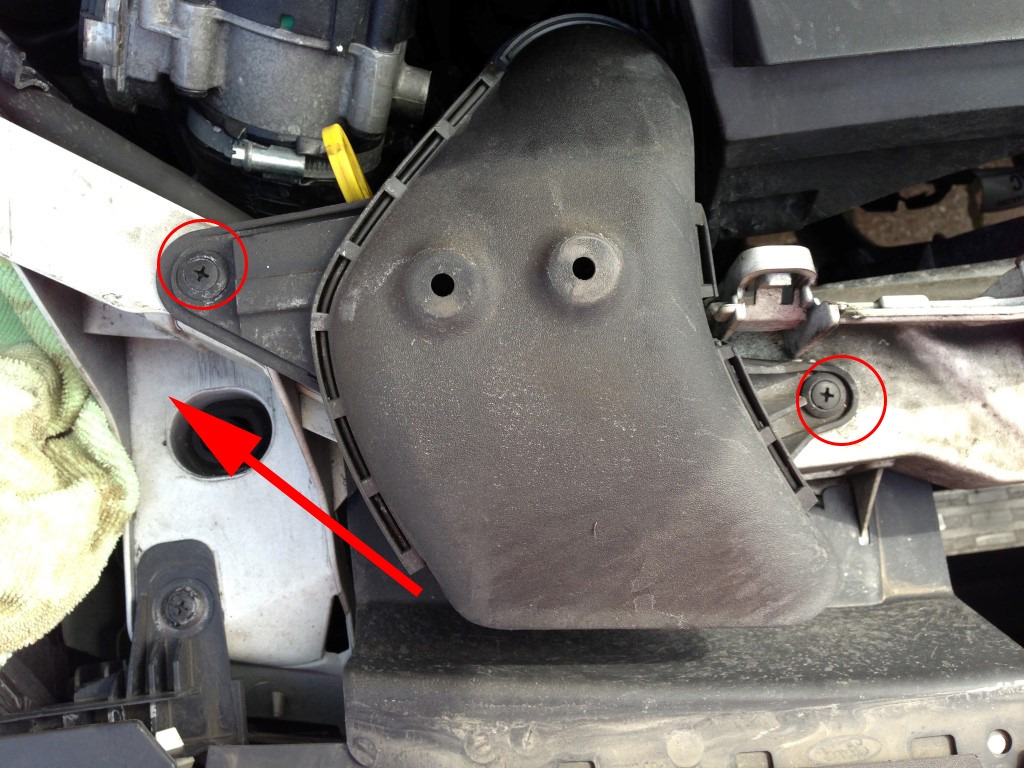

You will then need to remove the two screws and caps (as pictured below) to remove the cold air feed.

Ford Focus ST Cold Air Feed Removal

Twist the cold air feed towards the arrow, and it will simply pull straight out. This allows us to get our hands in a little easier to remove the oil filter housing.

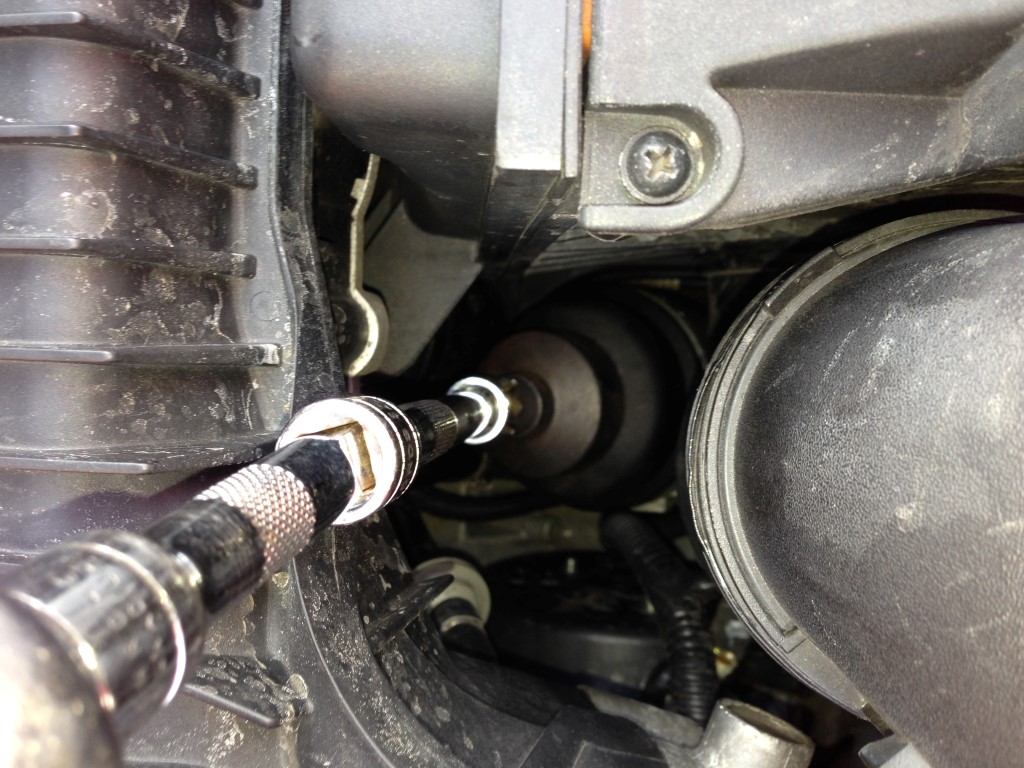

Now using your 36mm socket with your extension bars and an elbow / CV joint bit, you can unscrew the oil filter housing.

Ford Focus ST Oil Filter Housing

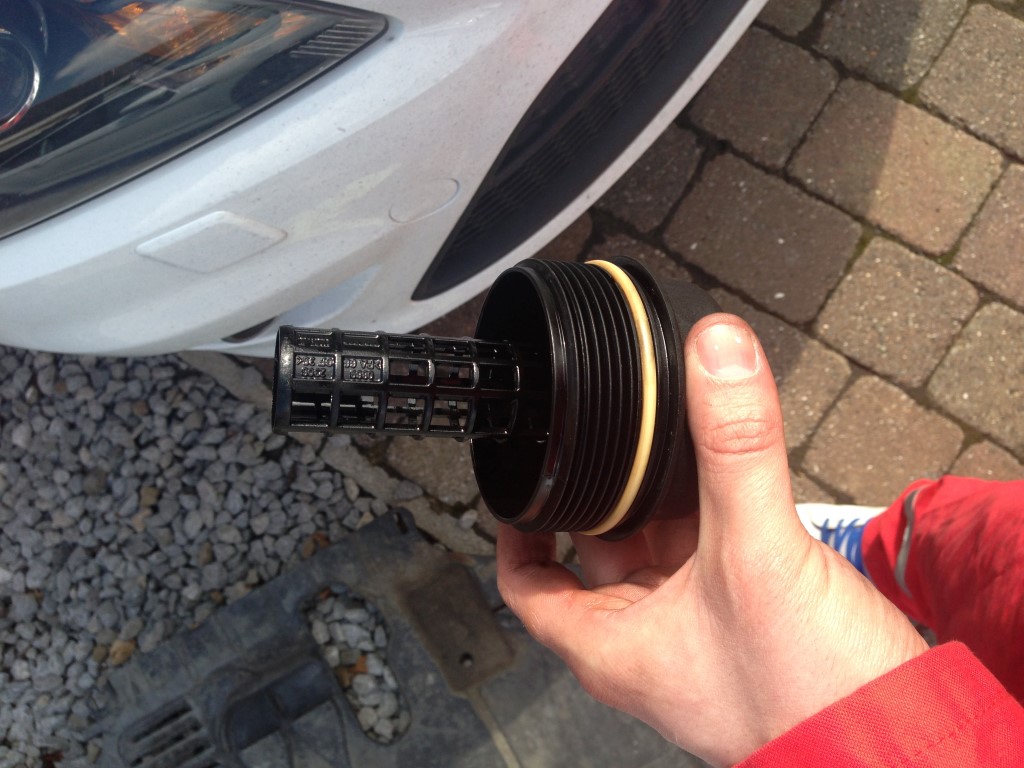

Once you have unscrewed this, you will need to get your hand in, and remove the oil filter housing. This can be a little tricky as its a tight fit, I found if you pulled the cold air feed pipe towards the front of the car, it would allow you to squeeze the housing cap out of the gap. Once removed, you can check you have the correct oil filter.

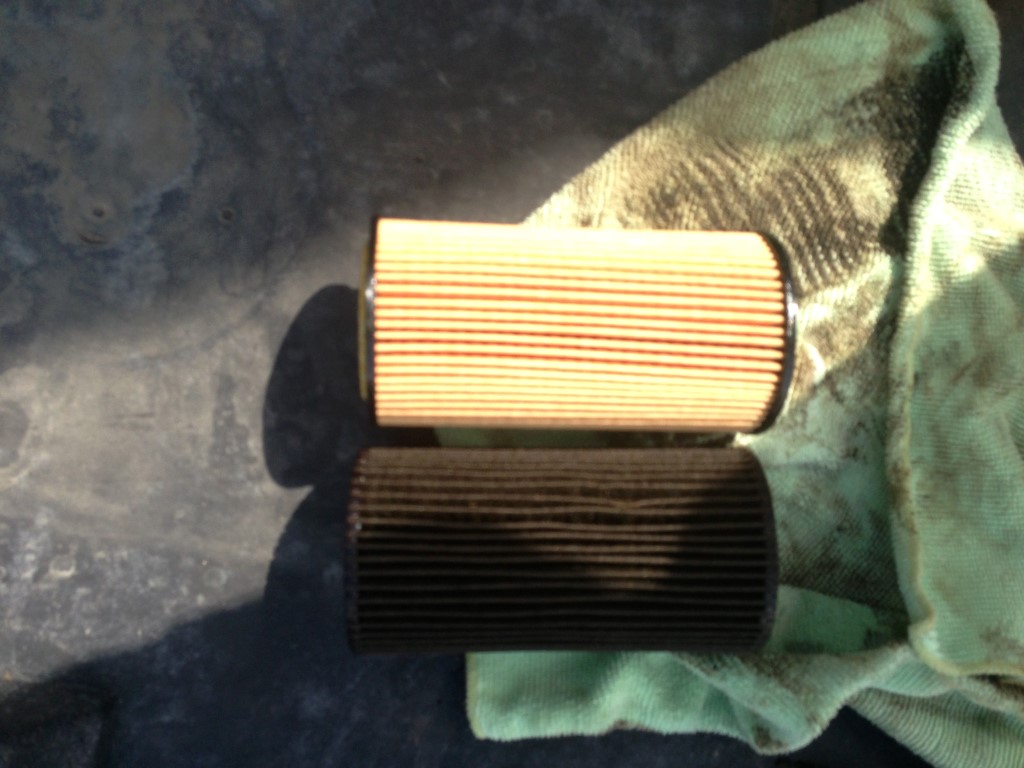

Ford Focus ST Oil Filter Old & New

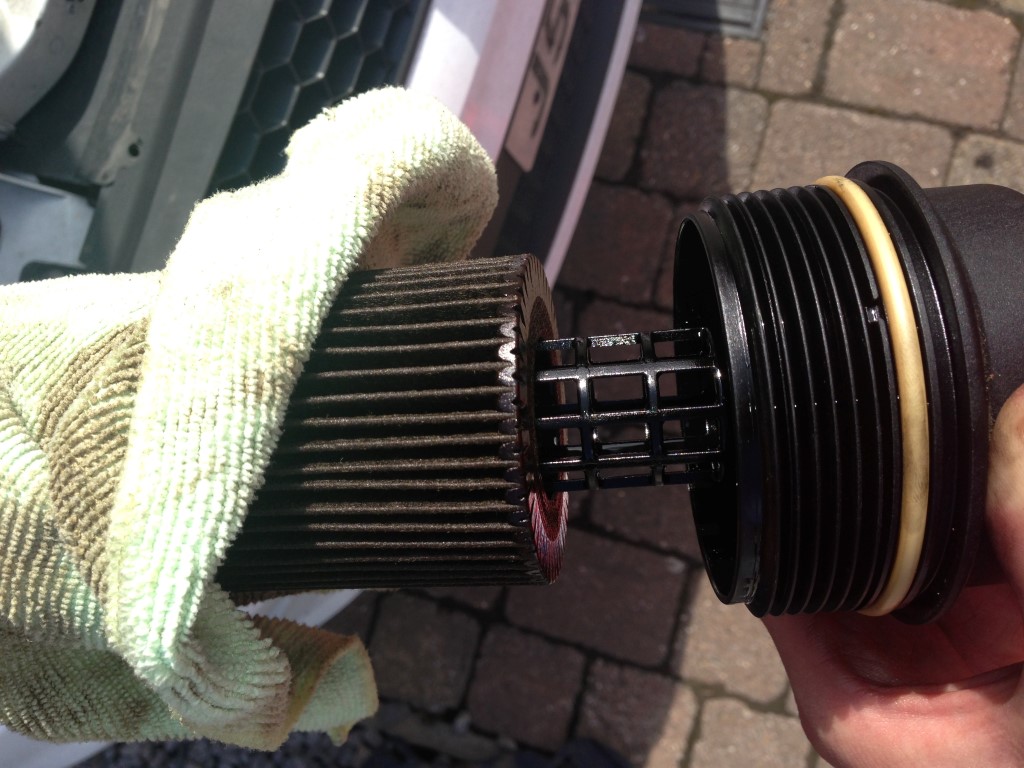

Ford Focus ST Oil Filter HousingFord Focus ST Oil Filter RemovalFord Focus ST Oil Filter Fitting

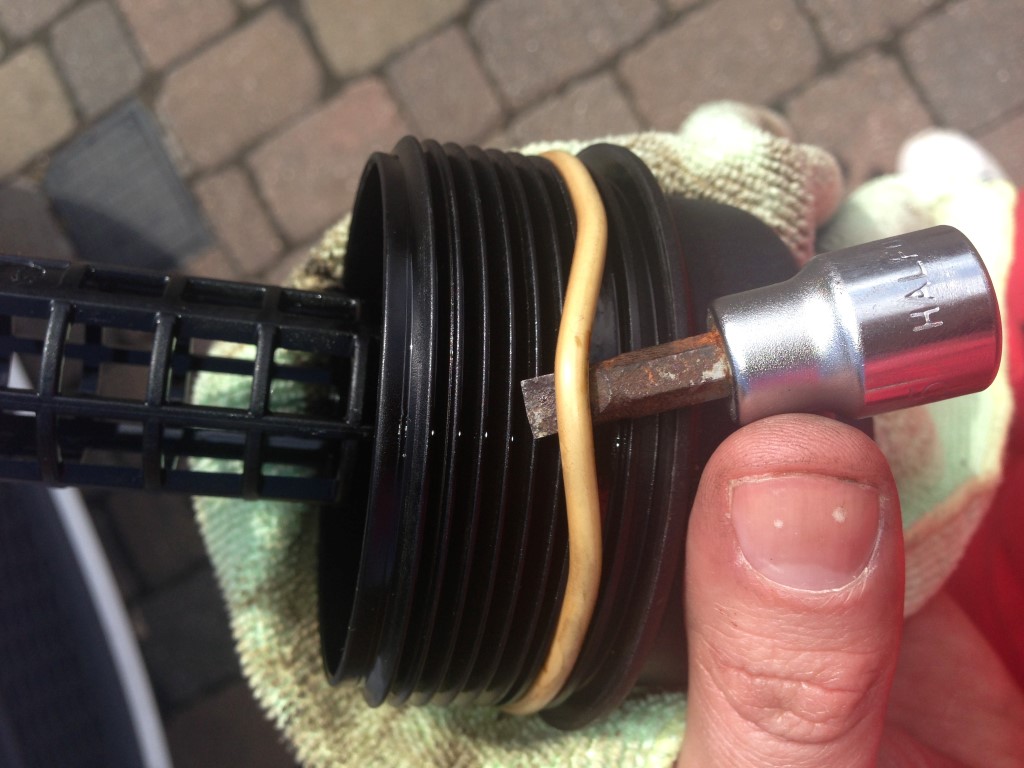

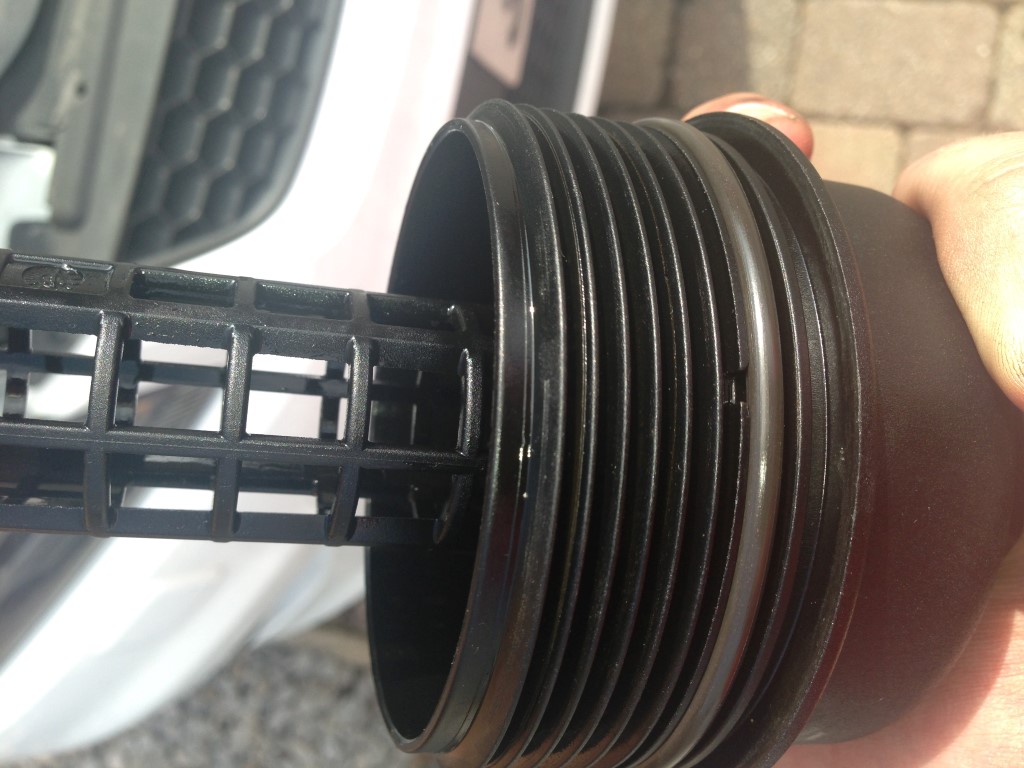

You will also need to replace the rubber seal on the housing with a new one – Make sure you lubricate this seal using a little bit of oil on your finger, and run this around the seal once you have fitted the new on. This is where the flat head screw driver comes into use.

Ford Focus ST Oil Filter SealFord Focus ST Oil Filter Seal

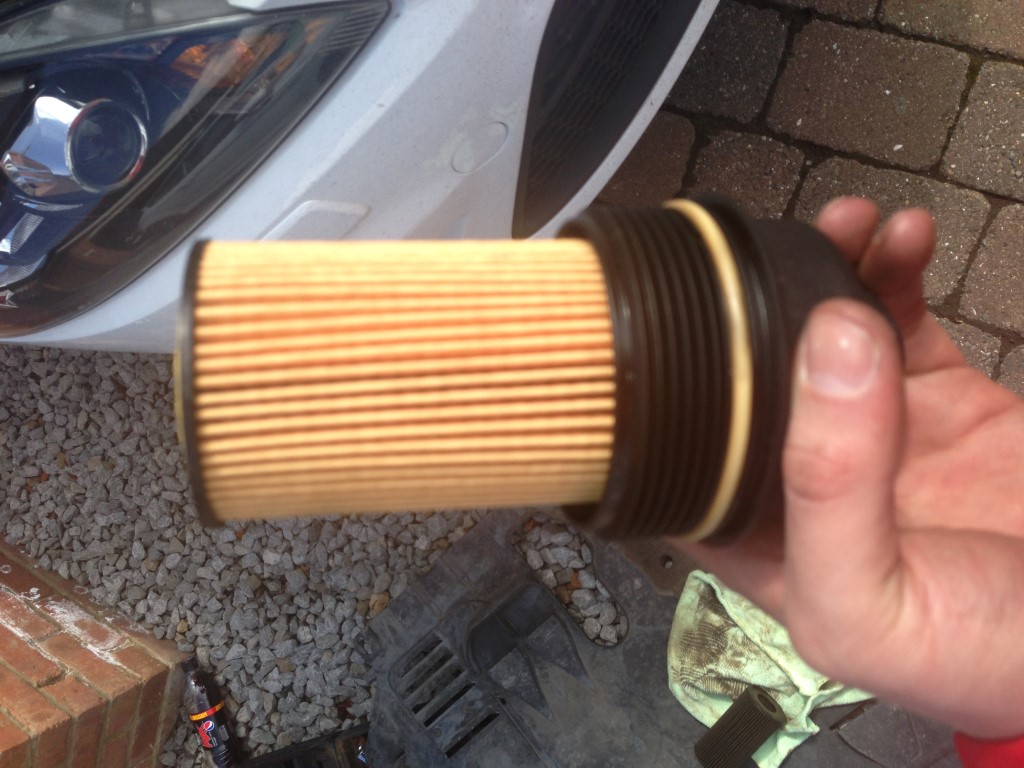

I found the next part a little easier if you first put your new oil filter into the oil filter housing on the engine, then fit the cap into the tight space, and finally re-tighten the hosing cap.

Once you have tightened the oil filter cap, you can get back under the car, and re-fit the sump plug (with its new washer), and we are ready to re-fill the car with fresh oil.

Look at the state of the old oil I removed from mine.

Ford Focus ST Dirty Oil

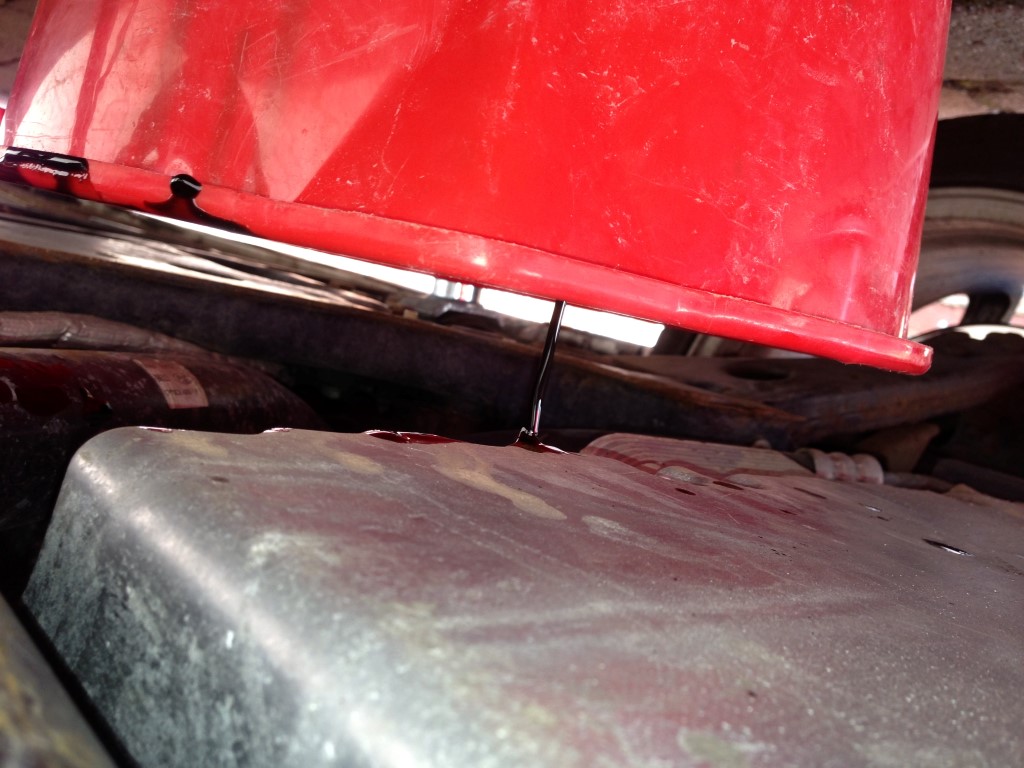

You can go ahead and pour a fill 4.5litre bottle of oil into the car, as it will easily take all this. Then go ahead and pour in another 1.5 (ish) litre of oil from your other bottle. While the oil is settling into the sump, you can go ahead and put the car back on the ground.

At this point, I removed the air filter and replaced mine with a re-usable K&N Filter, this is done by removing the following two screws, and pulling the filter box towards you.

Ford Focus ST Air Filter

Finally, using your rag, take the dipstick out, give it a clean, and insert the dip stick back into its housing. Wait a second or two and remove the dip stick again, and check its level. You are aiming to get the oil a little over half way at this stage (as there is currently no oil in the filter, or the pipes leading to this). If you are a little low, top up your oil, wait a little bit for the oil to drain through the engine, and test again.

Once you have your oil level over half, start your car – keep an eye on your oil pressure gauge at this stage, because if it doesn’t gain pressure after a few seconds, turn your car off as something is seriously wrong. If your car does gain pressure, you have done a perfect job. Let the car run for a moment or two, then turn the car off and check the oil once again. If the oil has dropped below half, give it a little top up to get the oil around half way up the reading on the dip stick – Remember oil expands when its warm, so chances are when you have taken the car for a drive and the oil is up to pressure, the oil will be a little under the full mark on the dipstick.

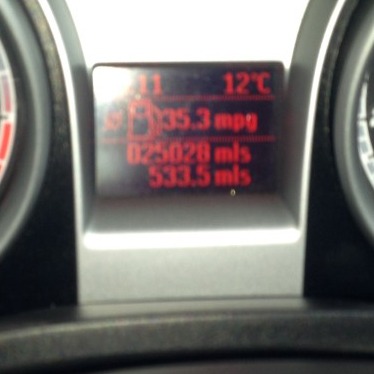

Another positive feature of changing your oil, you’ll notice the MPG increase! – Here’s mine after taking it straight to the petrol station and driving back home. Service Ford Focus ST – Simples! Now go give your car a wash and a fresh tank of 99 octane fuel, and it will thank you for its birthday!

Focus ST MPG
