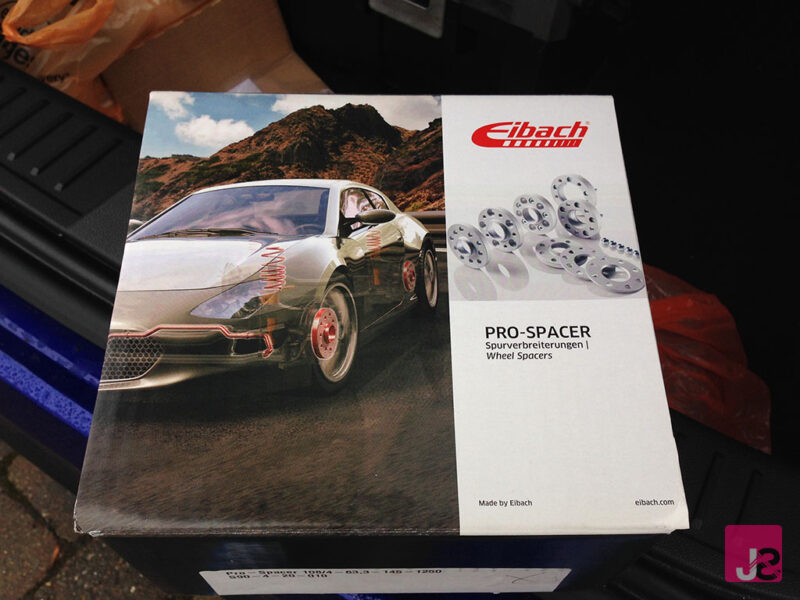

Automotive Eibach Pro Spacers Ford Fiesta MK7 Box

Published on December 15th, 2013 | by James Simpson

3

Fitting Ford Fiesta MK7 Spacers

The fitting Ford Fiesta MK7 Spacers guide will show you how easy it is to make your Ford Fiesta MK7 (or any car) have that wide stance when looking at the car from behind. There are also comments on making the car handle a little better, which is mildly debatable, but it’s mainly for looks, especially if you have lowered your car.

The guide is based on a Eibach’s Pro Street Ford Fiesta MK7 Spacers, which is a kit with 4 wheels spacers, and bolts. Fitting is as simple as removing the wheels, add the spacers, torque them up, and re-fit the wheels back on the car.

Spacers are available in multiple sizes, but some say the bigger the spacers, the more chance of an early failure of your wheel bearings (I know this will start a huge debate on here).

Fitting Ford Fiesta MK7 Spacers – Tools Required

  • Eibach Pro-Spacer Kit (108/4)
  • Jack
  • Torque Wrench

Fitting Ford Fiesta MK7 Spacers

First you will need to loosen the wheel bolts off, then raise the car with your car jack. Once raised, you can then fully remove the wheel bolts, and remove the wheels.

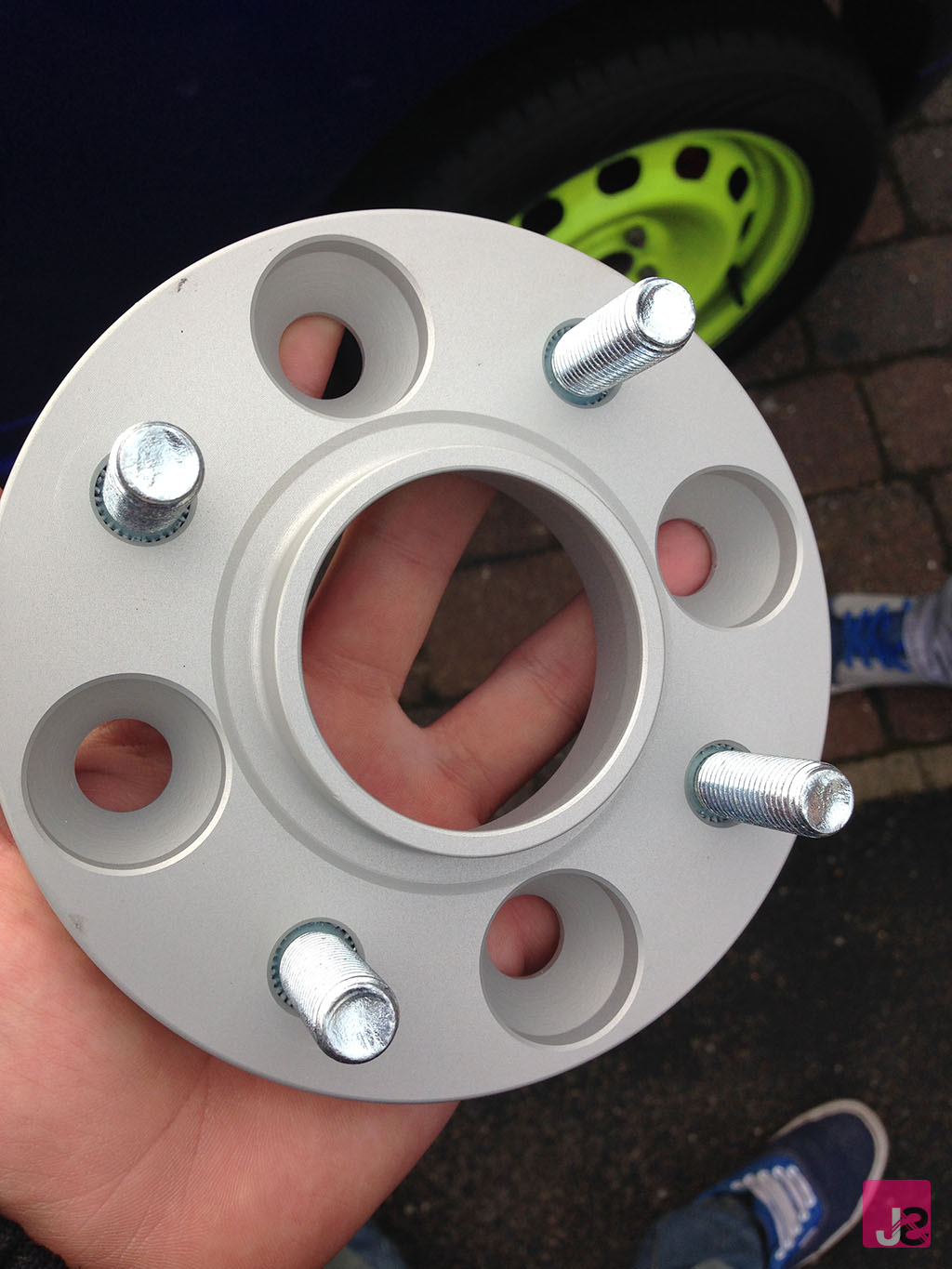

Ford Fiesta MK7 Eibach Spacers

These spacers are hub centric spacers, so they fit perfectly on the central hub of the cars axle. These are designed specifically for the Ford Fiesta, so they are a perfect fit.

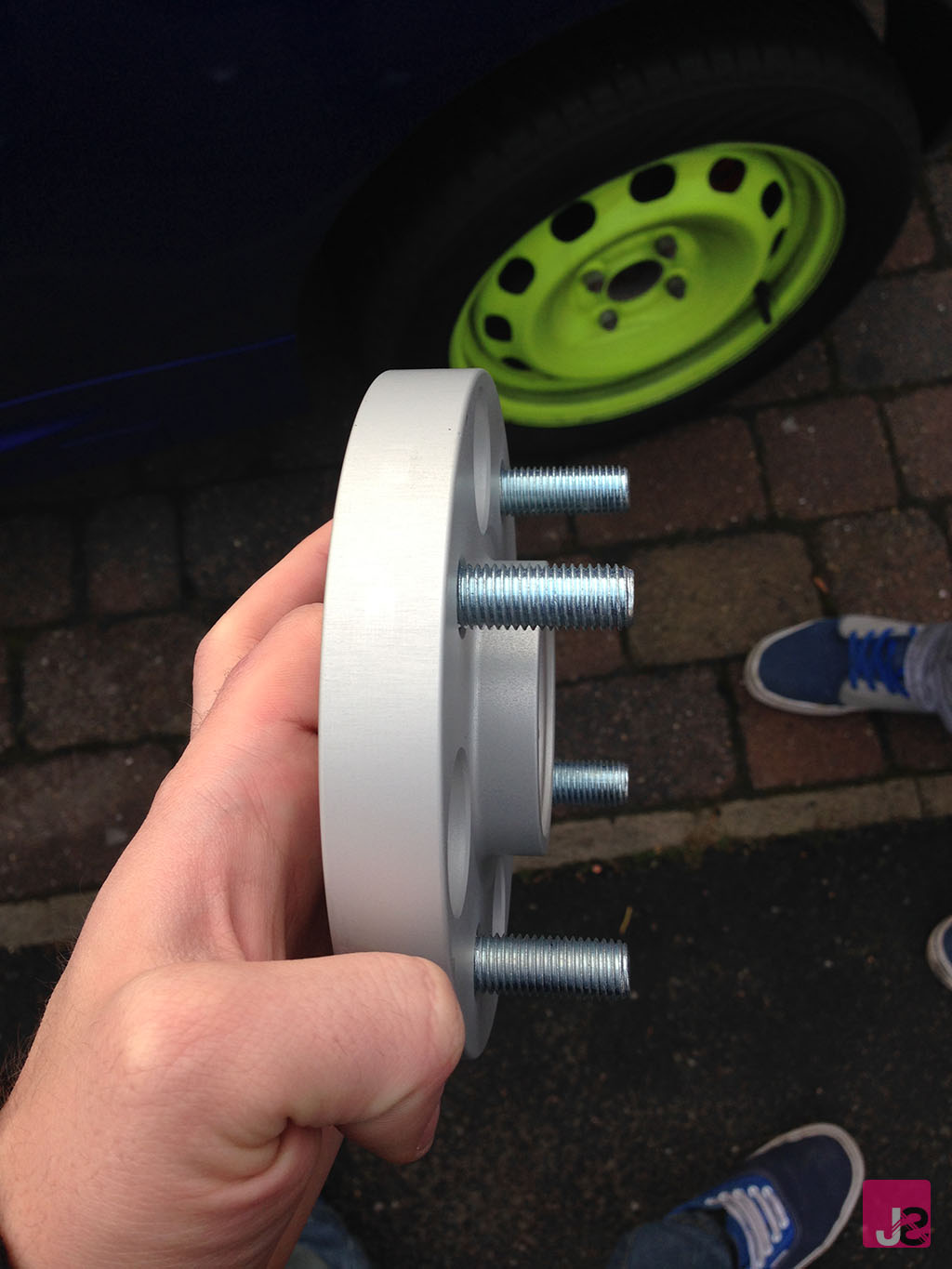

Ford Fiesta MK7 Eibach Pro Spacers Width

These particular spacers are 15mm wide, providing an overall 30mm change in the dimensions of the car.

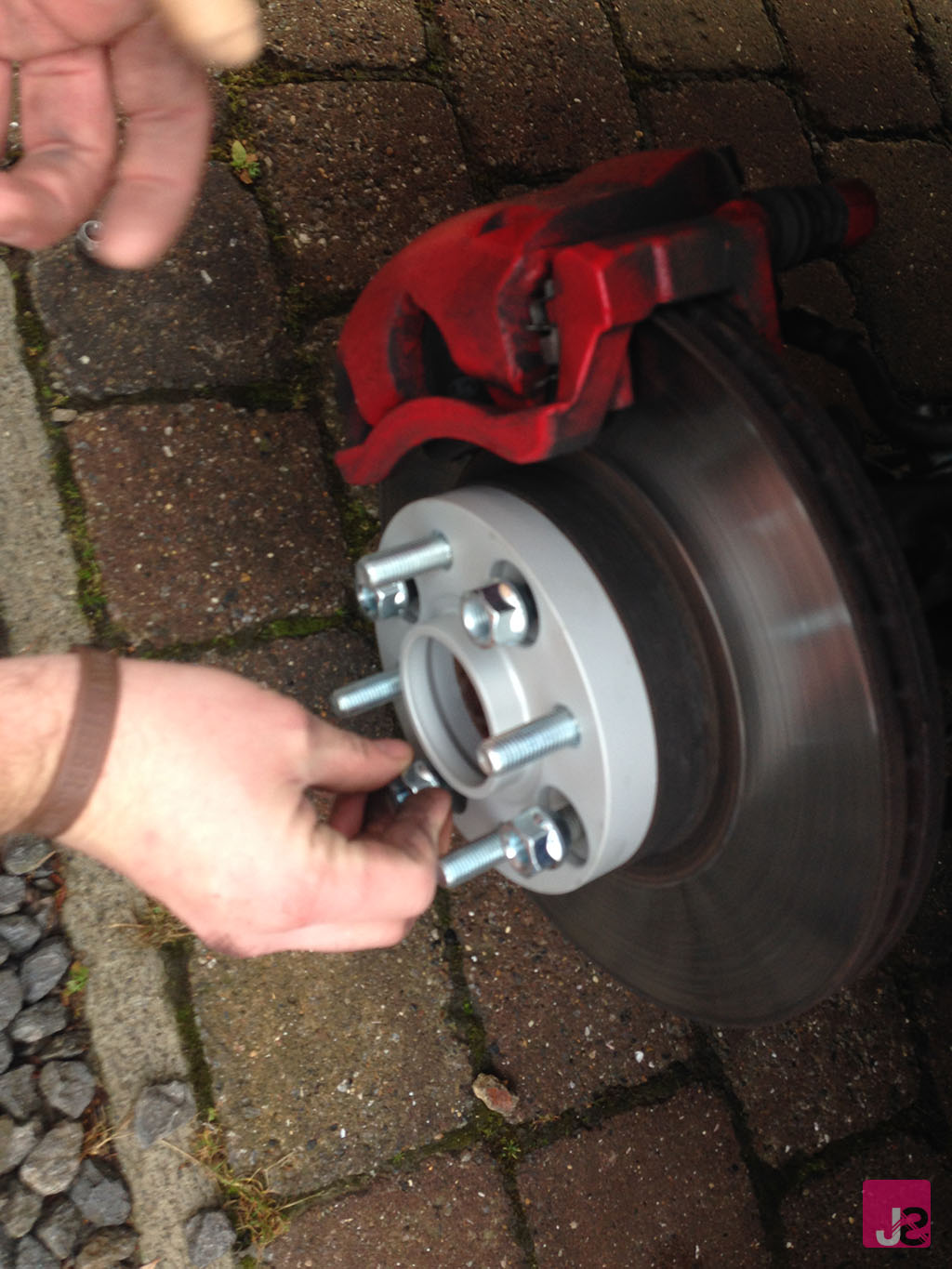

Fitting Ford Fiesta Spacers Eibach Pro

Place the wheel spacers into the hub, and add the bolts by hand, making sure not to cross thread the bolts. Once they are all finger tight, use your torque wrench to tighten the bolts up to 100nm.

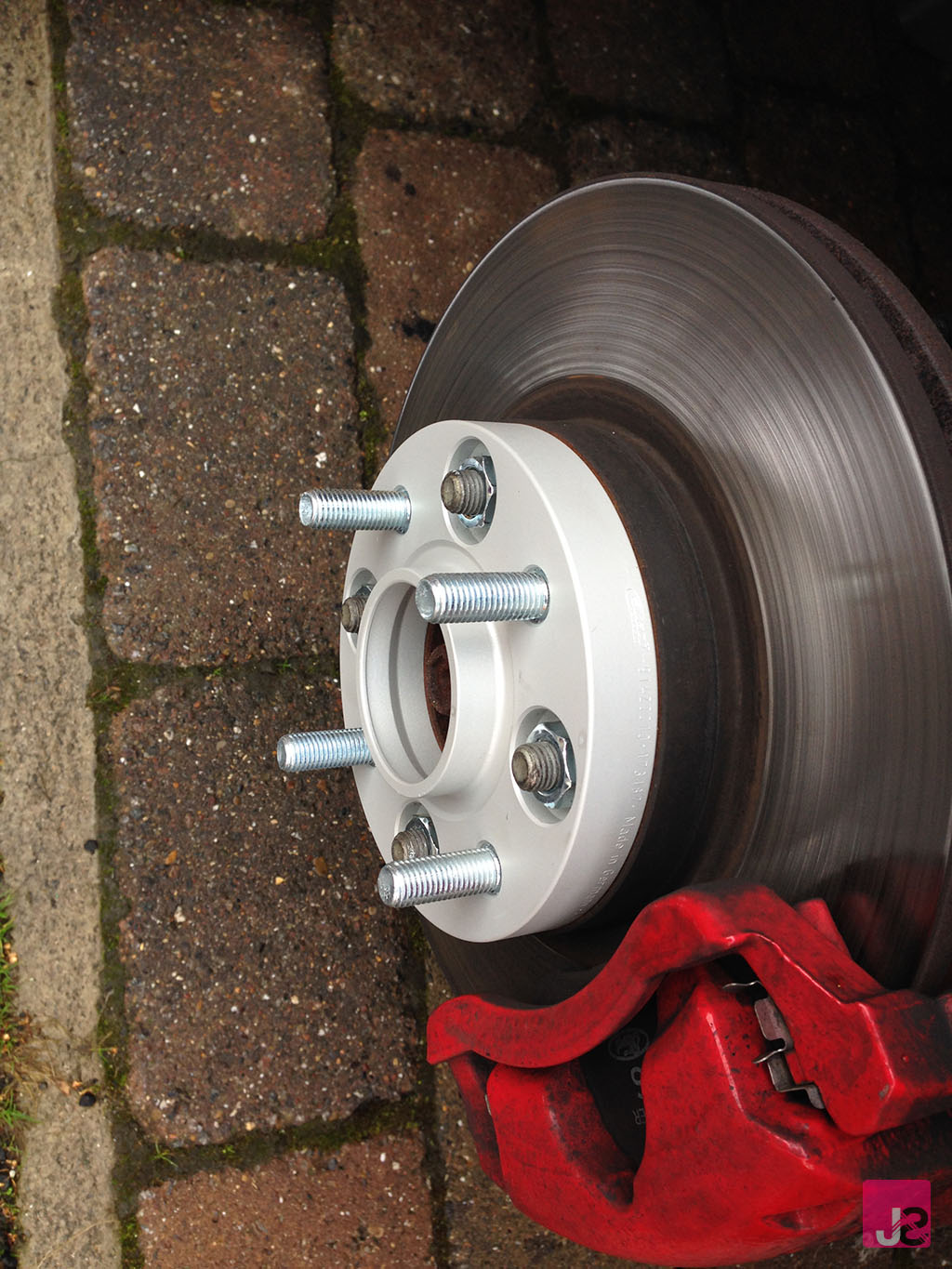

Ford Fiesta MK7 Spacers Fitted

Once fitted, you can then put your wheels back on the car.

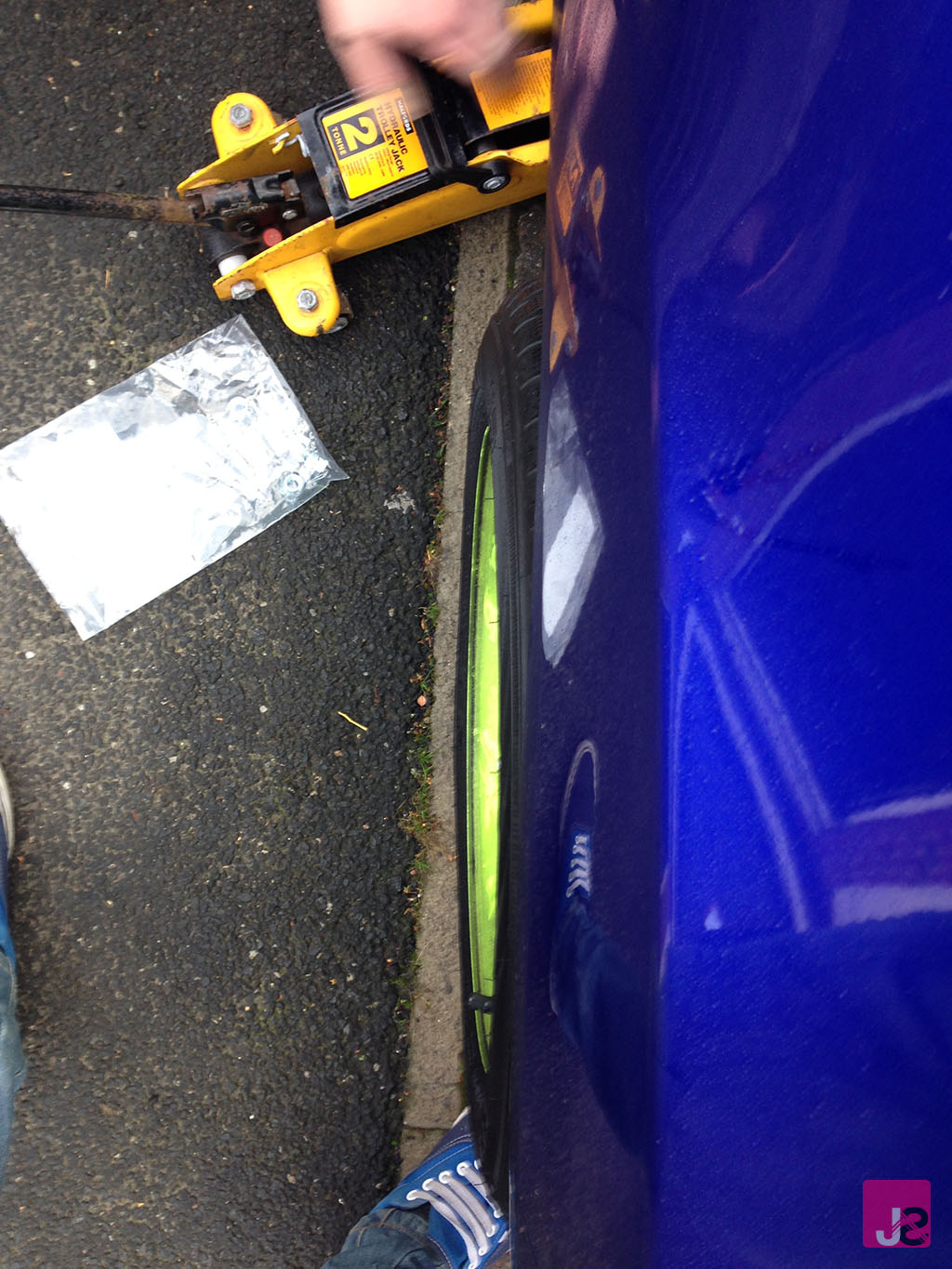

Ford Fiesta MK7 Spacers And Wheels

As you can now see, the wheels sit flush with the wheel arches.

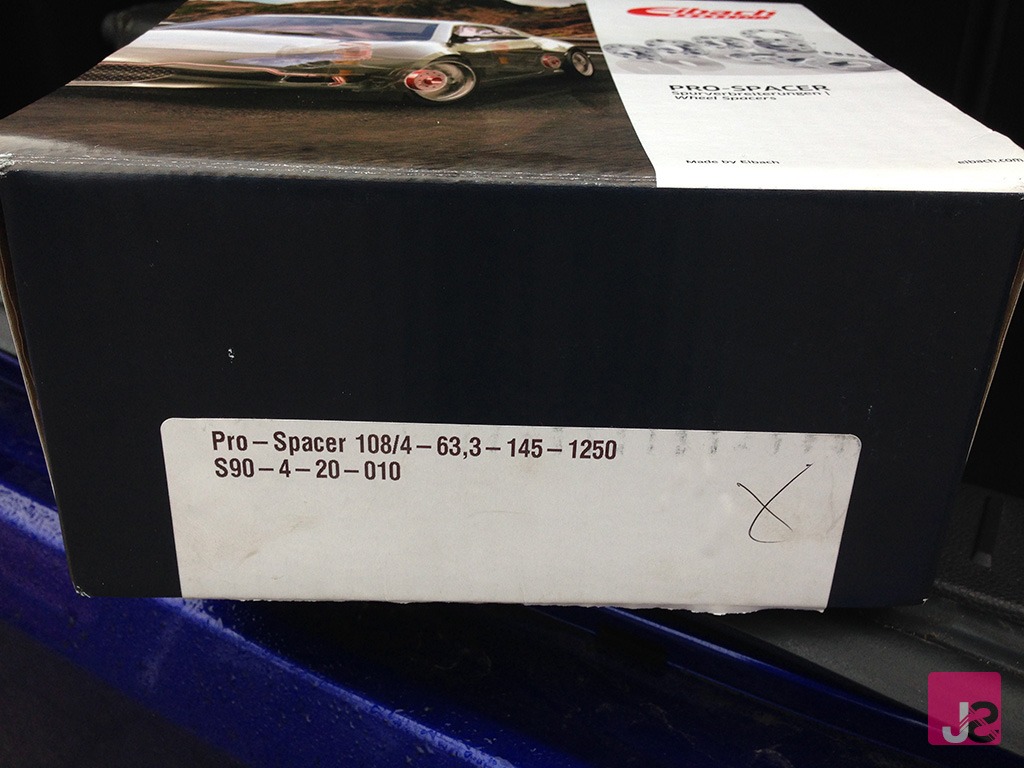

For anyone wanting to order the same part, these are available direct from Eibach with the following part number:

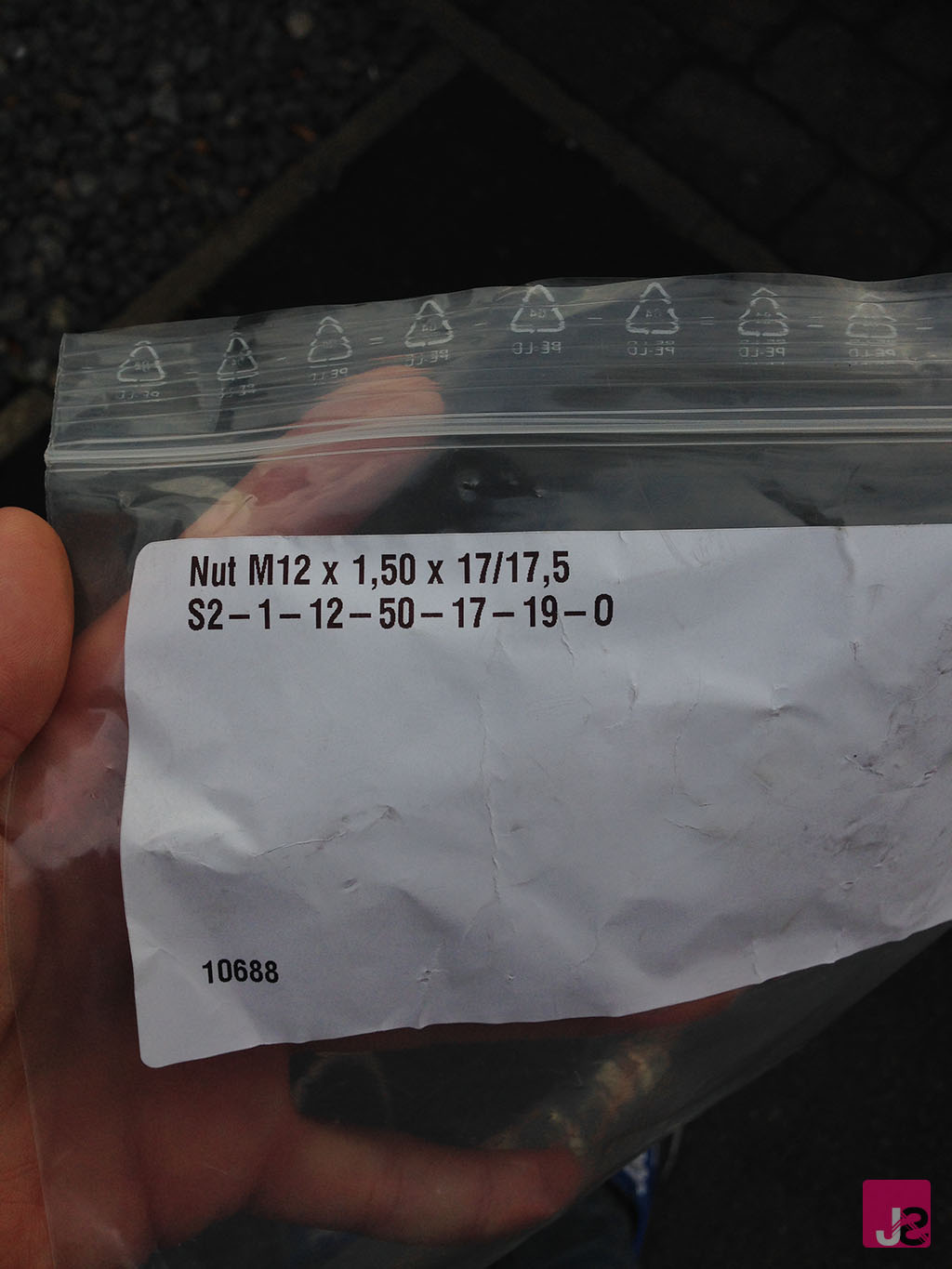

Eibach Pro Spacers Ford Fiesta MK7Ford Fiesta MK7 Spacer Nuts

Tags: ,


About the Author

University Graduate from Teesside, currently residing in the big city of Newcastle-Upon-Tyne. Interests in the automotive industry and technology, and blogging about things which I feel would interest the readers of the world wide web.



3 Responses to Fitting Ford Fiesta MK7 Spacers

  1. torsten says:

    hey! is this spacerkit all around 15mm or 15 in front and 20 in rear? Thanks

  2. Stefan says:

    hey mate, is that the spacer kit with all 4 being 15mm? Is the tyre close to the arches of the st at the front? Ive heard people have only gone for 10mm at the front wheels cus they are too close to the arches, cheers
