Suzuki Grand Vitara (2006-) Stereo Removal

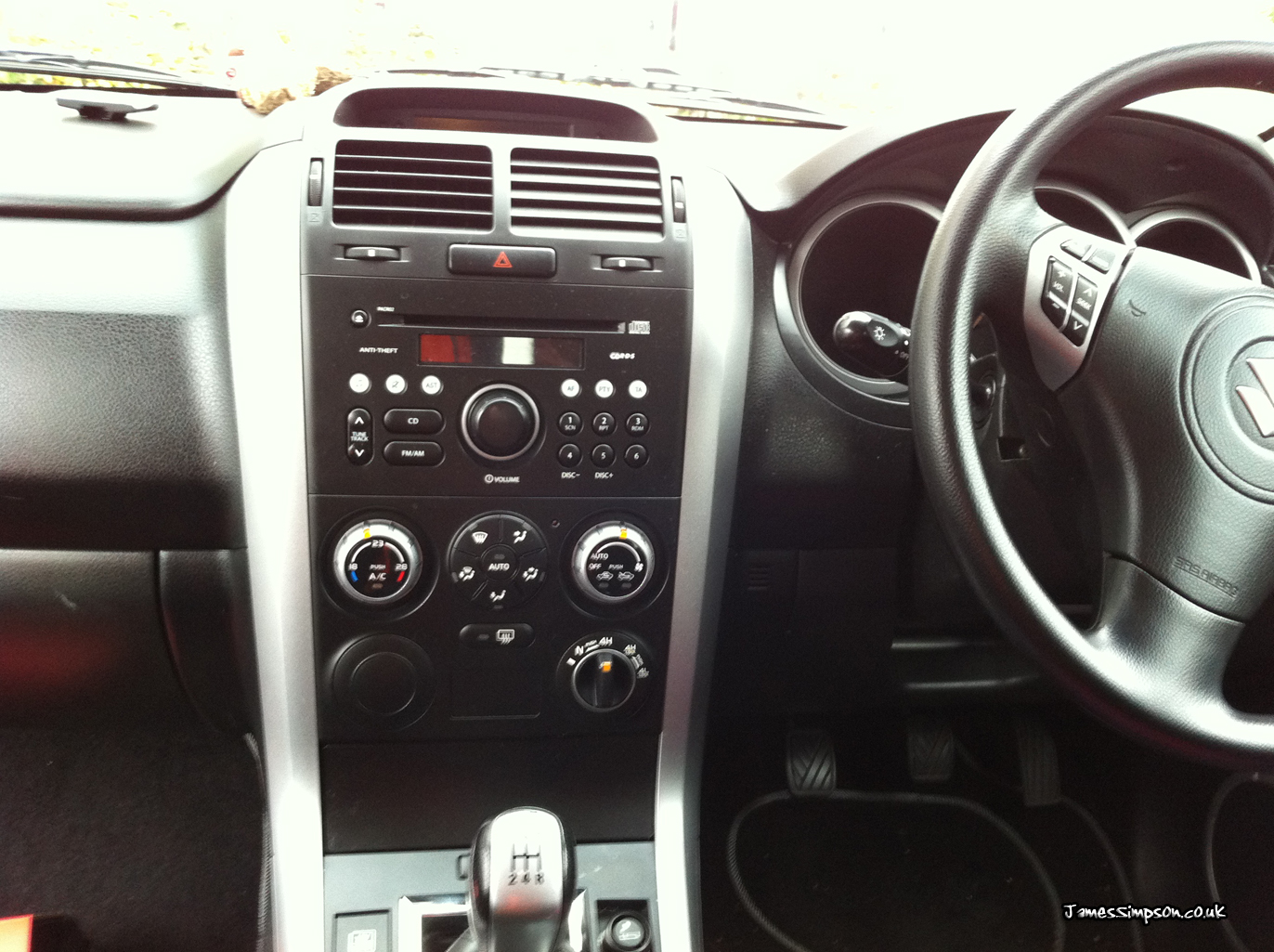

This is a how to guide on removing the standard Suzuki Grand Vitara MK3 stereo in a 2007 Suzuki Grand Vitara. You may be doing this to fit a hands free kit or the likes. Your stereo should look like the stereo below

Recommended Tools*

*Note above are general tools you should have when doing this type of job, but you may not need them, see tutorial for exact tools needed

Information

  • If you are changing to a new stereo, you will require a PC2-68-4
  • If you are fitting a Hands Free Kit (Parrot/Motorola) you will require a SOT-071

Steps

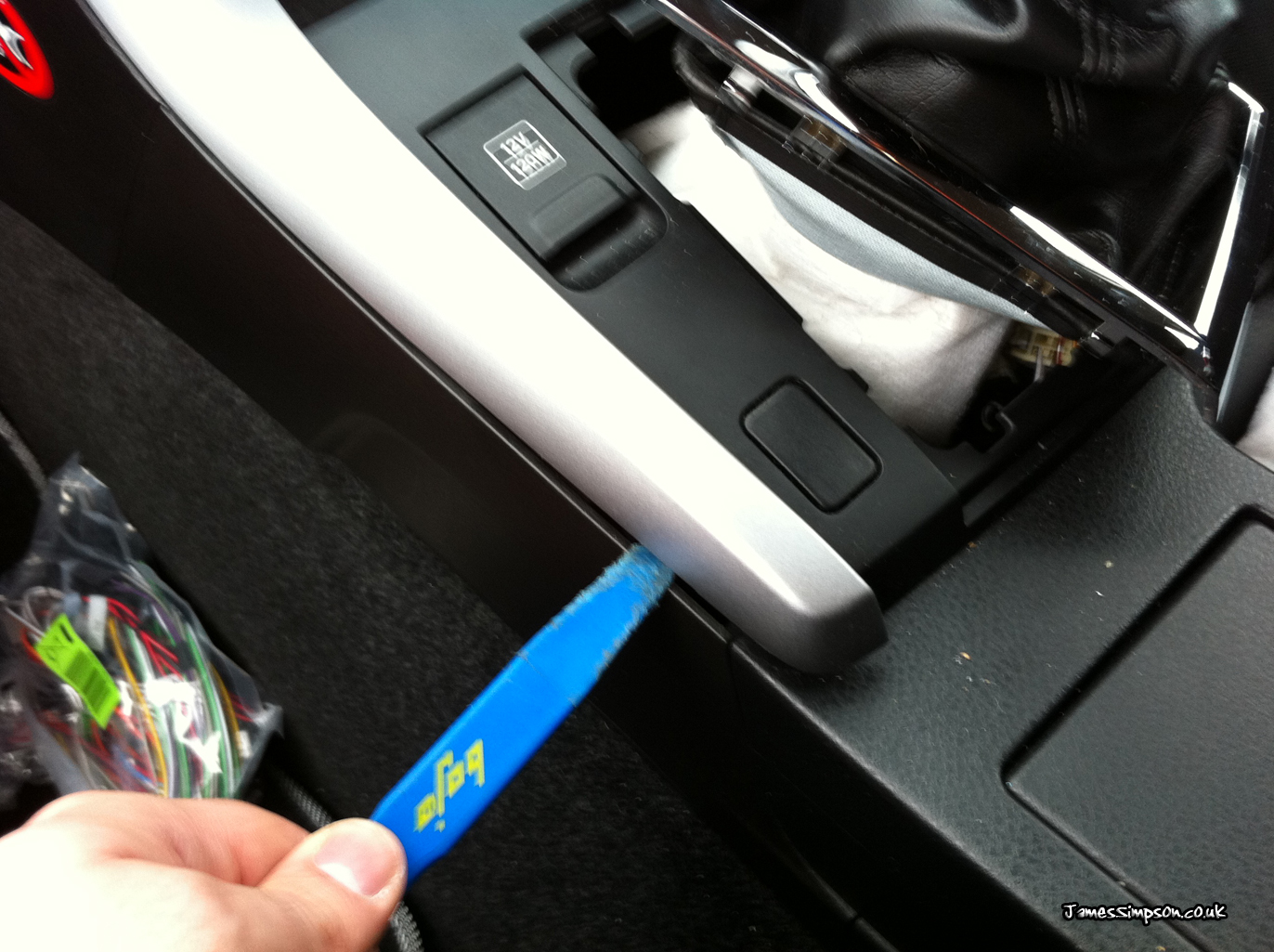

1. First you will need your trim removal tool, to start removing the silver trim around the sides of the stereo

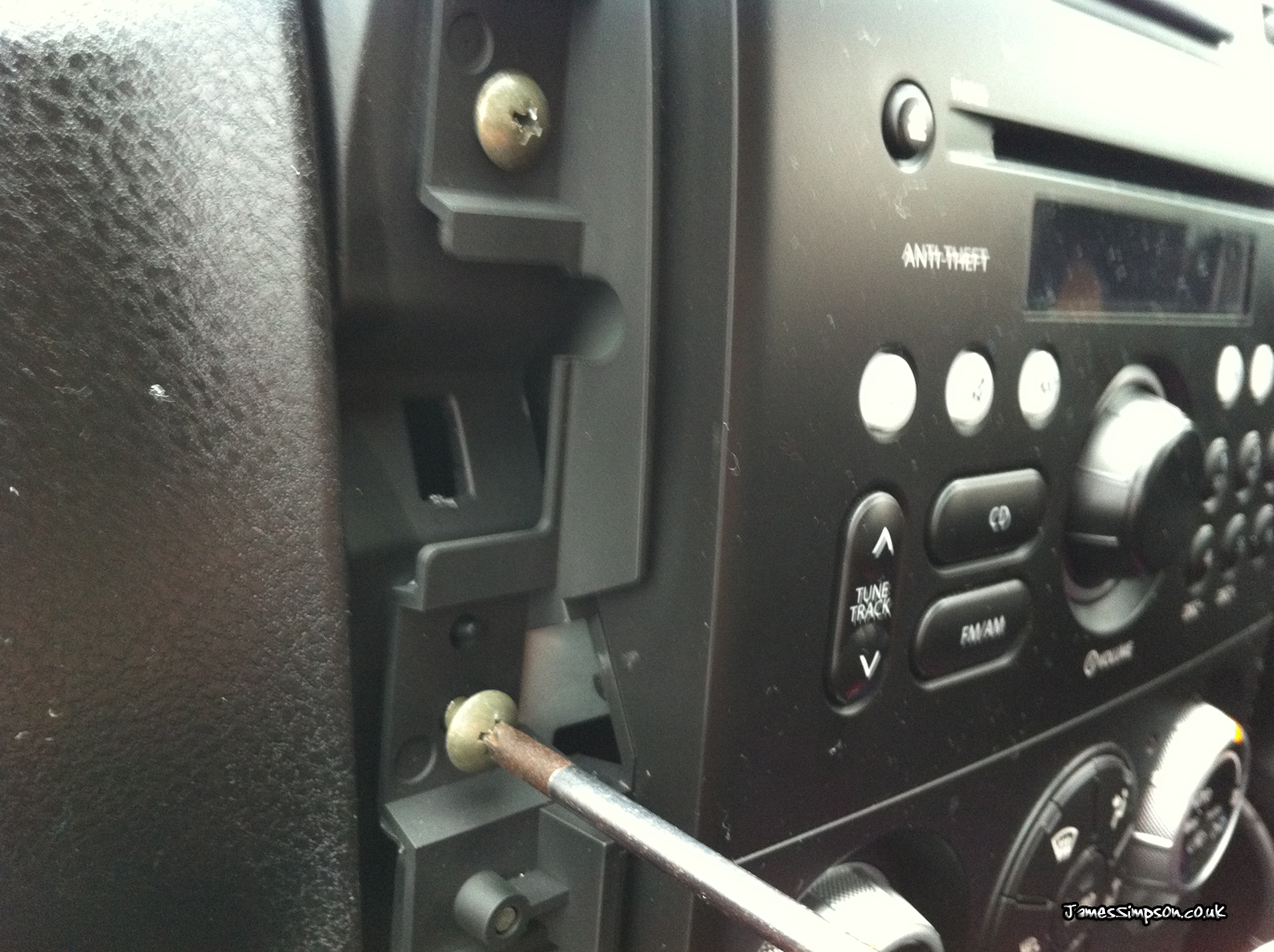

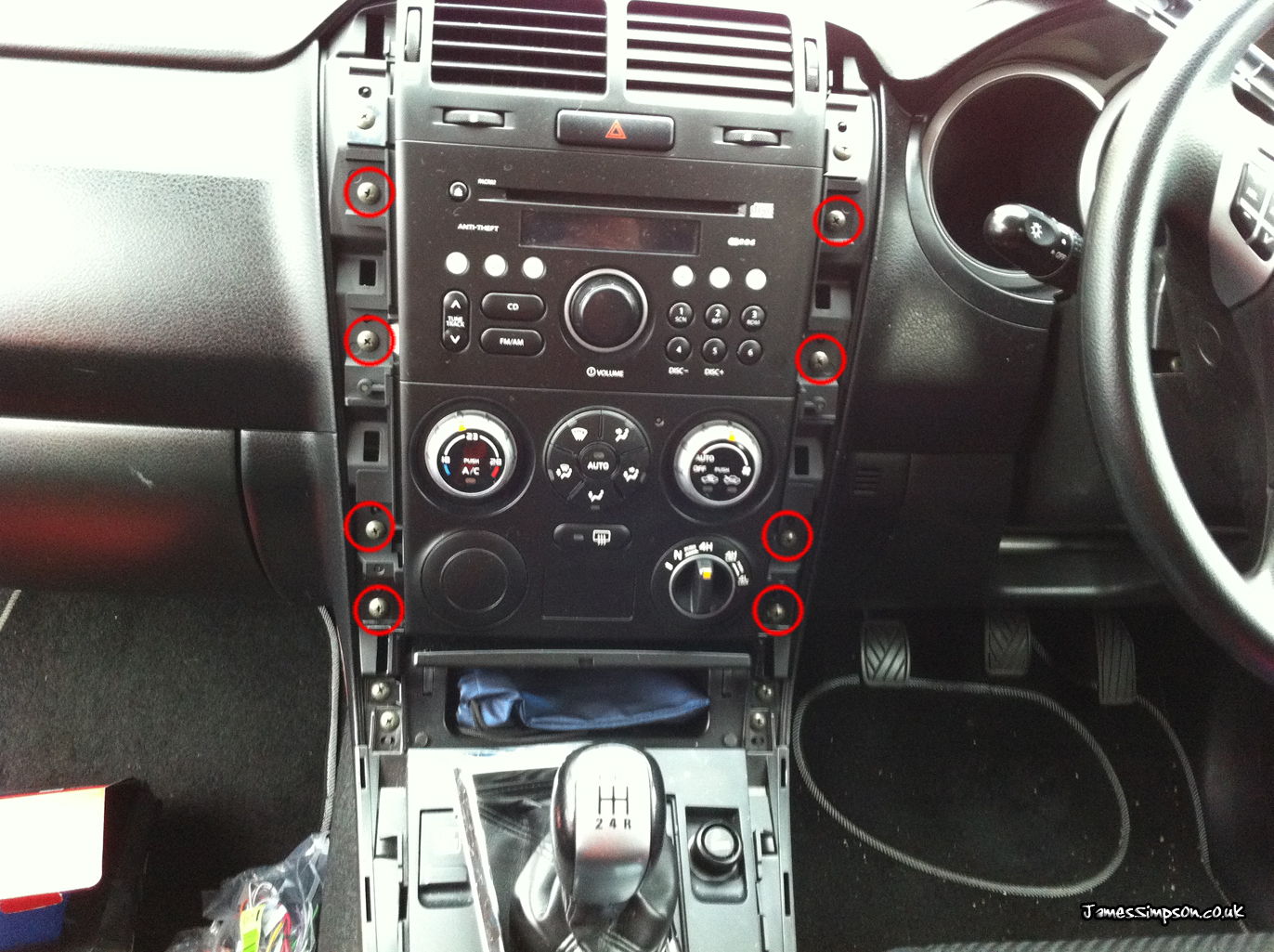

2. Once you have removed the trim, you will have revealed 8 Philips screws you will need to remove

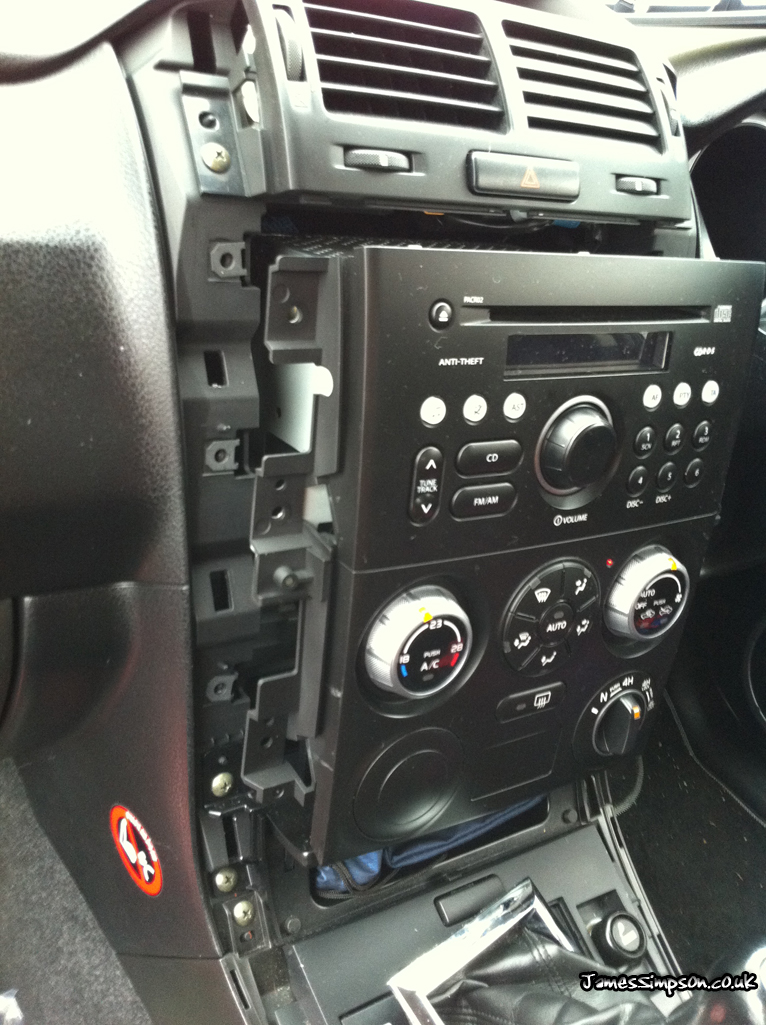

3. Now pull the whole unit out towards you

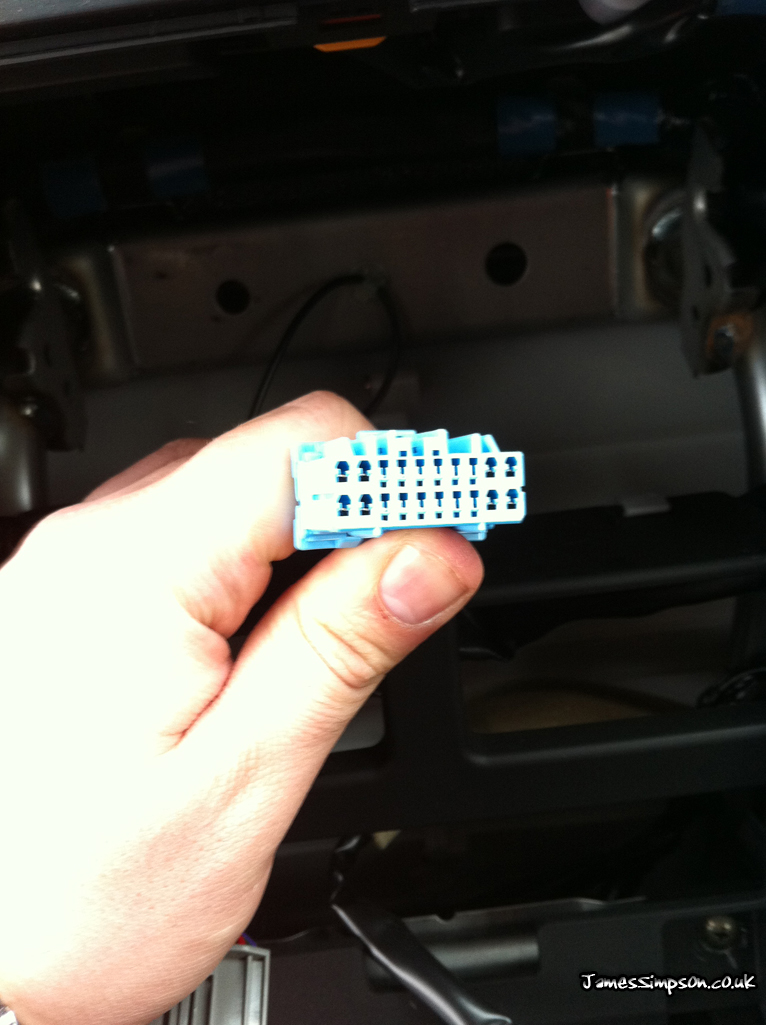

4. This will now reveal the standard connector
