Ford Focus MK2.5 (2008-2012) Stereo Removal ST/RS

This guide is for the European Ford Focus MK2 Facelift (Otherwise known as the Ford Focus MK2.5 in the Ford Community). The Focus MK2.5 was built between 2008 and 2012, and replaced the Ford Focus MK1. The facelift Focus can be distinguished by a face-lifted front end, which includes a new front grill design, modified headlight design, front bumper and other little tweaks.

On the inside of the car, there are not many differences, apart from the stereo, which is now more oval shape, and a completely new way to remove the stereo, from the Focus MK2.

This guide is suitable for the following models:

  • Ford Focus LX – 6000 CD Stereo as standard (2008-2012)
  • Ford Focus Style – 6000 CD Stereo as standard (2008-2012)
  • Ford Focus Sport – 6000 CD Stereo Wheels as standard (2008-2012)
  • Ford Focus Zetec & Zetec Climate – 6000 CD Stereo as standard (2008-2012)
  • Ford Focus Ghia – 6000 CD Stereo as standard (2008-2012)
  • Ford Focus Titanium – Sony Stereo as Standard (2008-2012)
  • Ford Focus ST – 6000 CD Stereo as standard (2008-2012)
  • Ford Focus RS – Sony Stereo as standard (2008-2012)

Ford Focus MK2.5 Stereo Info

There are three different stereo options available for the Ford Focus Mk2.5:

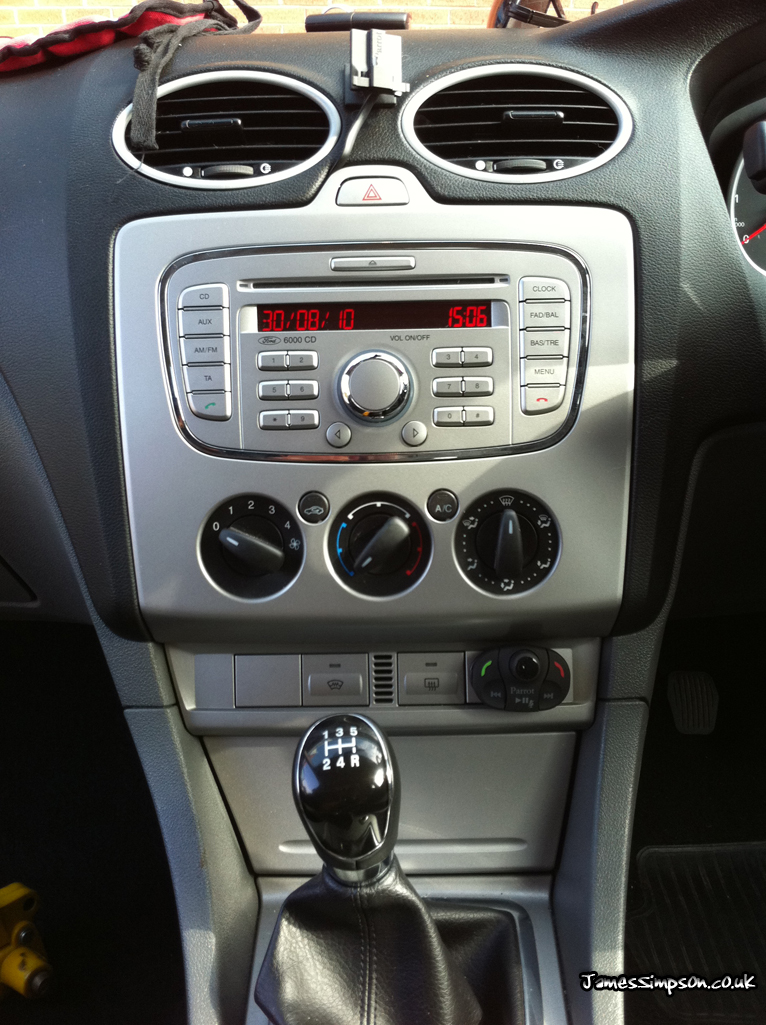

Base Stereo


Sony Stereo
Ford-Focus-MK2.5-Sony-Stereo


Navigation Stereo

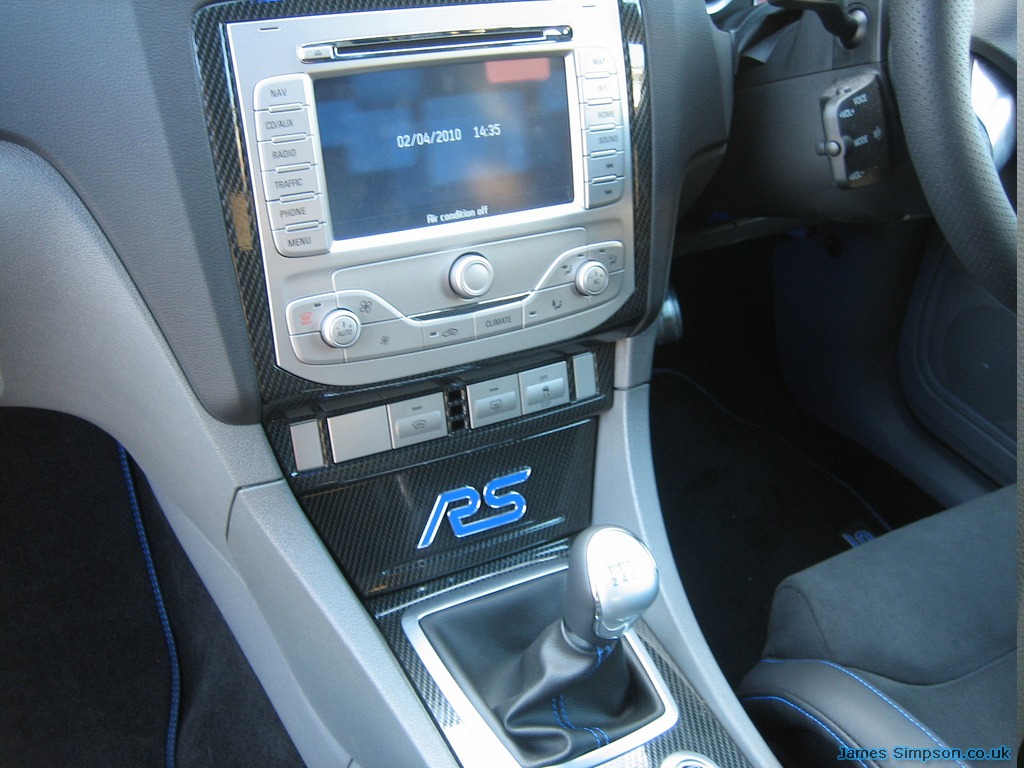

Ford-Focus-MK2.5-SatNavStereo

Fitting Information

Once you remove the stereo and disconnect the wiring from your Ford Focus MK2.5, you WILL be required to insert a code when connecting the stereo back up to the vehicles wiring. You can obtain this from your owner’s manual (usually on a business card sized card within the manual case), or requested from your local Ford Dealer Parts Desk.

Required Tools:

To remove the standard Ford Focus Stereo, you will need the following tools:

  • Bojo Trim Removal Tool Tools (Bojo Tool Store)
  • Flat Head + Philips Head Screw Drivers
  • T25 Torx Screwdriver / Star Allen Keys (Halfords)

See also Stereo Fitters Toolbox

Ford Focus MK2.5 Parts Required

Stereo Fitting Parts:

If you are planning on fitting an after market stereo you will need the following parts:
Wiring Harness:

  • Autoleads PC2-84-4  – None Steering Wheel (Stalk) Controls
  • Autoleads PC99-X50 + Compatible PC99 Patch Lead Steering Wheel (Stalk) Control

Fascia Plates:

  • Autoleads FP-07-11 – Black Ford Focus MK2.5 Single DIN Fascia
  • Autoleads FP-07-11/S – Silver Ford Focus MK2.5 Single DIN Fascia
  • Autoleads FP-07-12 – Black Ford Focus MK2.5 Single DIN Fascia With Pocket
  • Autoleads FP-07-12/S – Silver Ford Focus MK2.5 Single DIN Fascia With Pocket
  • Connects2 CT24FD15 – Black Ford Focus MK2.5 Single DIN Fascia
  • Connects2 CT24FD16 – Silver Ford Focus MK2.5 Single DIN Fascia
  • Connects2 CT24FD27 – Black Ford Focus MK2.5 Single DIN Fascia With Pocket
  • Connects2 CT24FD26 – Silver Ford Focus MK2.5 Single DIN Fascia With Pocket

Hands Free Fitting Parts:

If you are planning on fitting an after market hands free kit (Parrot/Motorola), you will need the following:
Wiring Harness:

  • MusiConnect MC2082 or INKA-048-2082 – (See Here For Details) – My Recommendation Buy
  • Autoleads SOT-092



Stereo Removal Video



Stereo Removal Steps

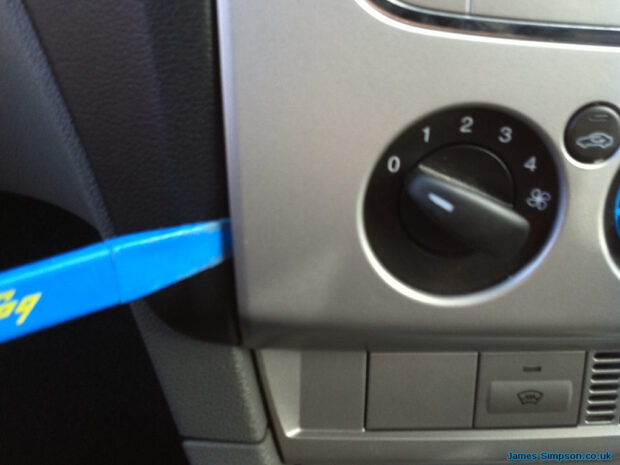

Ford-Focus-Stereo-Fascia-Remove

Using your trim removal pry tool (Bojo), start by prying the lower edge of the fascia away from the dash-board. Slide the trim tool upwards to release the plastic fascia from its containing clips.

This can sometimes be a little tricky, and may take a little force to remove, but as long as you are using the correct tools (such as the Bojo Trim Tool), you will not cause any damage to the plastic trim.

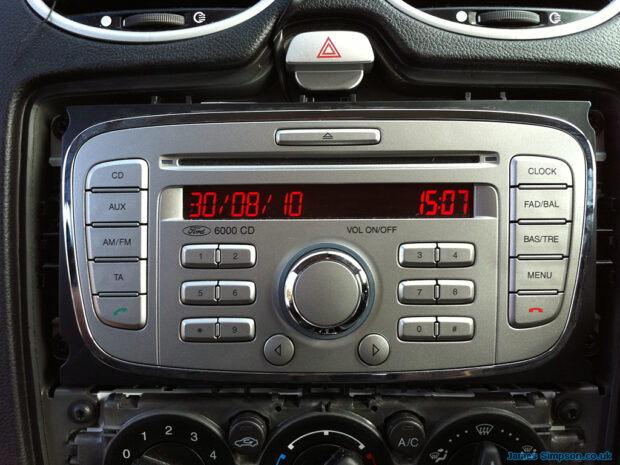

Ford-Focus-Stere-Fascia-Removed

Now that you have removed the plastic fascia surrounding the stereo, you will now see four screws holding the stereo in place. These screws will mostly be Philips screws, but I have also seen Torx screws on the odd occasion. Unscrewing the four screws will allow you to slide the stereo out.

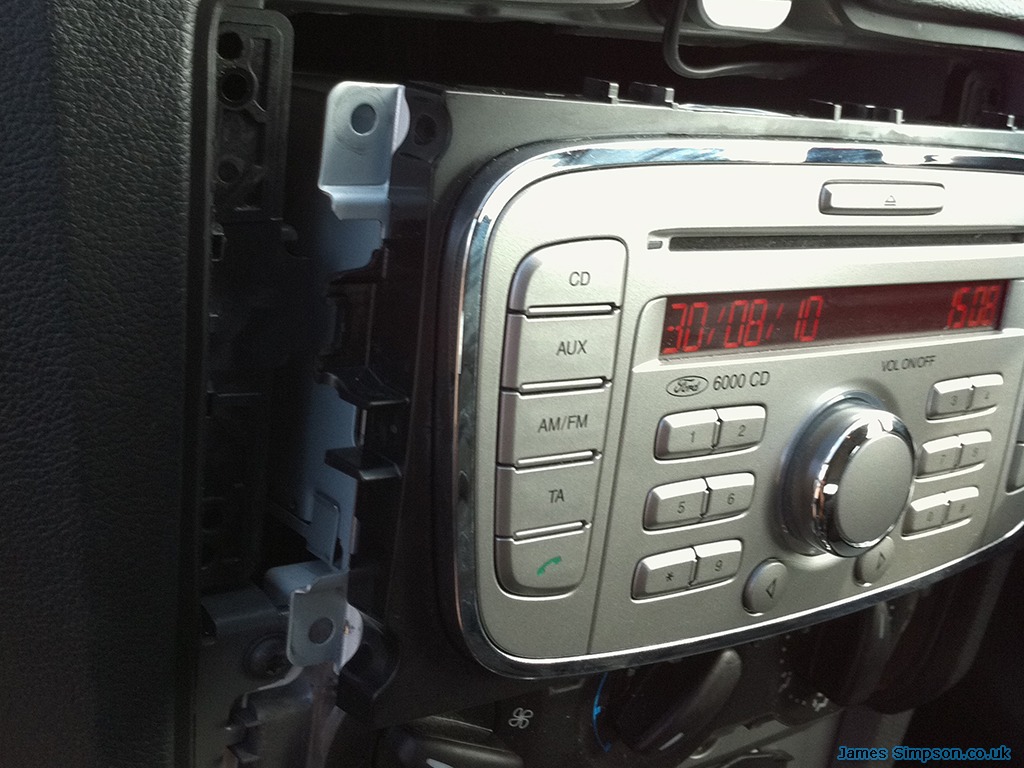

Ford-Focus-MK2.5-Stereo-Removed

The stereo should now be free (you may have to push two little clips on the left hand and right hand side of the stereo (you will only need to do this if you pull the stereo out at a bit of an angle).

Ford Focus Mk2.5 Connector

The Ford Focus uses what is known as a “Quadlock” connector. This is released by pushing the little clip on the arm down, and then pulling the whole away from the back of the stereo.

Ford Focus Quadlock

All the wires you need are behind the stereo, no need to find an ignition or 12 volt feed, everything is plug and play. The Ford Focus MK2.5 uses what is known as a “Quadlock” system. This is now a standardised system in a lot of vehicles of this year.

Ford Focus MK2.5 Quadlock Pinout

Connector A (Speakers & Power)


Pin 1 – Rear Right +
Pin 2 – Front Right +
Pin 3 – Front Left +
Pin 4 – Rear Left +
Pin 5 – Rear Right  –
Pin 6 – Front Right –
Pin 7 – Front Left –
Pin 8 – Rear Left –


Pin 9 – CAN Bus +
Pin 10 – CAN Bus –
Pin 11 – Keycode Ground
Pin 12 – Ground
Pin 13 – Alarm Sensor
Pin 14 – Illumination
Pin 15 – Battery 12v + (Permanent Live)
Pin 16 – 12v Ignition Live

 Connector B (Aux 1)


Pin 1 – Mono +
Pin 2 – Sw A +
Pin 3 – Aux In Left +
Pin 4 – Aux In Right +
Pin 5 – PTA
Pin 6 – SWC (Steering Wheel Control)


Pin 7 – Mono –
Pin 8 – SWC Ground
Pin 9 – Aux In Left –
Pin 10 – Aux In Right –
Pin 11 – Reverse Sensor Signal
Pin 12 – AVC (Speed Control Volume)

Connector C (Aux 1)


Pin 1 – RSE Left +
Pin 2 – RSE Right +
Pin 3 – Mono 2 +
Pin 4 – Sub Woofer +
Pin 5 – Aux 2 Left
Pin 6 – Audio Ground


Pin 7 – RSE Left –
Pin 8 – RSE Right –
Pin 9 – Mono 2 –
Pin 10 – Sub Woofer –
Pin 11 – Aux 2 Right
Pin 12 – Mic

If you’re fitting a hands free kit to your MK2.5 Focus, don’t forget to take out the stalk control and aux wires from the quad lock connector and place them in the new Sound On Top (SOT) lead (failure to do so will mean the owner will be unable to use their stalk controls or aux lead).
